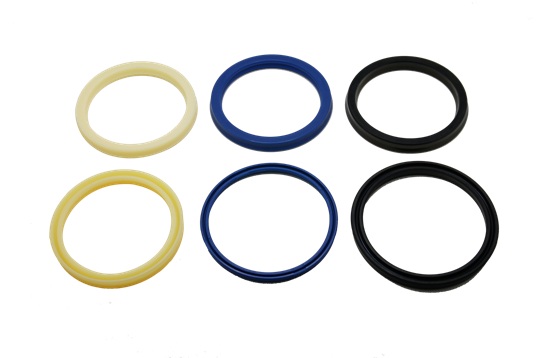

擋油油封 U迫緊
型號 :
IDI ISI IUI ODI OSI IUH UPH USH UPI USI IUI
擋油油封U迫緊 U-Packing , ROD Seal , ROD PACKING 重機械挖土機油封 油壓缸油封
規格:IDI ISI IUI ODI OSI IUH UPH USH UPI USI IUI
尺寸:內徑8~ 300 mm
NOK - ODI OSI IDI ISI
Pressure (Typ.)4350 PSI / 30 Mpa
Pressure (with backup)6,100 PSI / 42 Mpa
Linear Velocity1.5 ft/s / 0.5 m/s
Temperature (Typ.)-30°C/100°C to -22°F/212°F
The packing material Noxlan has excellent wear resistance, and is used for relatively
low pressure operations. It's used with general petroleum hydraulic fluid oil.
