NIT-200 四爪中空油壓夾頭(不含連接板) 4-jaw through-hole power chuck (adapter excluded)



l          All sliding surfaces are hardened and ground for accurate actual running and long service repeatability. Lubrication nipple in each master jaw.

l          Master jaw : 1.5mm x 60° serration.

l          Mounting : Adaptor mounting to fit with DIN, ISO, BS, ASA B5.9 type A spindles.



SPEC
Model

Through
-Hole
(mm)

Plunger
Stroke
(mm)

Jaw
Stroke
(In Dia.)
(mm)

Max.
Pull
Force
(kgf)

Max.
Gripping
Force
(kgf)

Max.
Operating
Pressure
(kgf / cm2)

Max.
Speed
(r.p.m.)

Weight
(kg)

Moment
Of Inertia
I
(kg
m2 )

Matching
Cylinder

Matching
Hard Jaw

Matching
Soft Jaw

Gripping
O.D. Range
(mm)

NIT-206

Ø45

12

5.5

2243

5812

28.5

4500

13.7

0.058

M1246

HJ06

HC06

Ø15-Ø169

NIT-208

Ø52

16

7.4

3558

9075

26.5

3600

24

0.177

M1552

HJ08

HC08

Ø20-Ø210

NIT-210

Ø75

19

8.8

4385

11319

27.5

3200

36

0.324

M1875

HJ10

HC10

Ø25-Ø254

NIT-212

Ø91

23

10.6

5812

14990

27.5

2700

58.5

0.763

M2091

HJ12

HC12

Ø30-Ø304

NIT-215

Ø117.5

23

10.6

7240

18355

23.5

1900

114

2.331

M2511

HJ15

HC15

Ø50-Ø381

NIT-218

Ø117.5

23

10.6

7240

18355

23.5

1500

140

3.798

M2511

HJ15

HC15

Ø50-Ø450

NIT-224

Ø205

26

12

9177

23861

26.5

1000

284

15.2

ML3320

HJ24-1

HC24-1

Ø150-Ø610

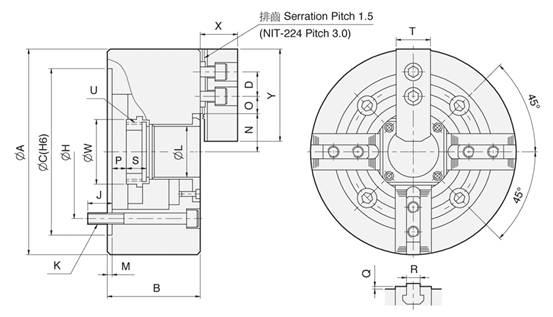

DIM
Model

A

B

C
(H6)

D

H

J

K

L

M

N
max.

O
max.

O
min.

P
max.

P
min.

Q

R

S

T

U
max.

W

X

Y

NIT-206

169

81

140

20

104.78

16

4-M10x80

45

5

32

22.75

9.25

11

-1

2

12

19

31

M55x2

60

37

73

NIT-208

210

91

170

25

133.35

20

4-M12x90

52

5

38.7

29.75

11.75

14.5

-1.5

2

14

20.5

35

M60x2

66

38

95

NIT-210

254

100

220

30

171.45

22

4-M16x100

75

5

51

33.75

14.25

8.5

-10.5

2

16

25

40

M85x2

94

43

110

NIT-212

304

110

220

30

171.45

23

4-M16x110

91

6

61.3

45.75

15.75

8

-15

2

21

28

50

M100x2

108

51

130

NIT-215

381

133

300

43

235

35

4-M20x135

117.5

6

82

45.25

15.25

7

-16

5

22

43

62

M130x2

139

66

165

NIT-218

450

133

300

43

235

35

4-M20x135

117.5

6

82

79.75

15.25

7

-16

5

22

43

62

M130x2

139

66

165

NIT-224

610

147

520

60

463.6

35

8-M24x150

205

6

139.9

87.5

24.5

16

-10

5

25

38

64

M215x3

230

73

180
