• 千斤頂 CK-S

千斤頂 CK-S

型號 : CK-S

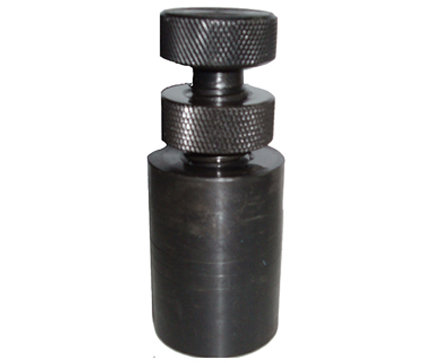

千斤頂 CK-S  Screw jack



千斤頂 CK-S Screw jack

l          Purpose: Height is adjustable for supporting the working piece on table

l          Material: S45C, black oxide furnished

  用途:高度可調以支撐工作台上的工件

  材料:S45C,黑色氧化皮

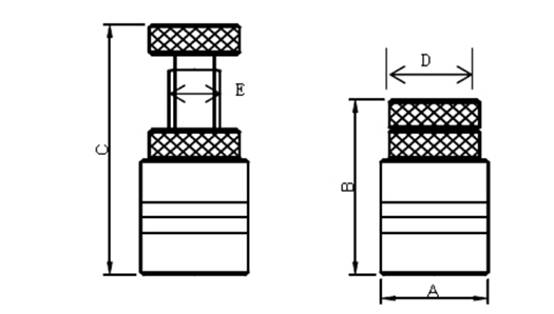

Order no.

Thread size

Appliable range(mm)

Max. support loading

S-70

Tr14x3

56~75



S-100

Tr18x4

76~105

15 tons

S-150

Tr24x5

102~160

21.5 tons

S-250S

Tr32x5

142~235

46 tons

S-250L

Tr32x5

160~260

46 tons

S-300

Tr32x5

200~345

46 tons

S-400

Tr32x5

300~430

46 tons

Order no.

Thread size

Appliable range(mm)

Max. support loading

S-70

Tr14x3

56~75



S-100

Tr18x4

76~105

15 tons

S-150

Tr24x5

102~160

21.5 tons

S-250S

Tr32x5

142~235

46 tons

S-250L

Tr32x5

160~260

46 tons

S-300

Tr32x5

200~345

46 tons

S-400

Tr32x5

300~430

46 tons
