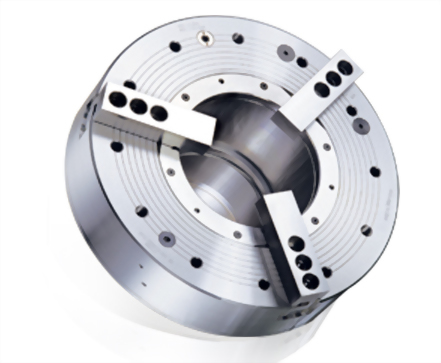

PB-ES(275) 氣壓連接式夾頭 Pneumatic power chuck



l          Air chuck for external clamping with built-in pneumatic cylinder.

l          Fast and clamping jaw stroke.

l          Clamping pressure control.

l          Clamping stroke control.



SPEC
Model

Through
-Hole
(mm)

Total
Stroke / Jaw
(mm)

Fast
Stroke / Jaw
(mm)

Clamping
Stroke / Jaw
(mm)

Piston
Area
(cm2)

Operating
Pressure
Min.-Max.(bar)

Gripping*
Force
(KN.)

Max.
Speed
(r.p.m.)

Weight
(kg)

Moment
Of Inertia
I
(kg
m2 )

Air*
Consumption
(L)

600-275

275

25.4

16.9

8.5

954

2-10

180

1100

360

20.6

39.5
