CRA 筒夾夾頭 Collet chuck for short taper mount



l          Collet chucks with bayonet catch are mainly used for chucking bar work on NC / CNC lathes.

l          The bar can be fed in through the chuck.

l          Profiles can also be chucked with the appropriate collets.



*Uses the collet to DIN6343 specification.



SPEC
Model

Matching
Spindle

Bar
Capacity
(mm)

Sleeve
Stroke
(mm)

Max.
Push
Force
KN(kgf)

Max.
Gripping
Force
KN(kgf)

Max.
Speed
(r.p.m.)

Weight
(kg)

CR26A4

A2-4

26

5

20 (2039)

44 (4486)

7000

4.5

CR30A4

A2-4

30

5

20 (2039)

44 (4486)

7000

4.1

CR42A5

A2-5

42

7

25 (2549)

55 (5608)

6000

6.2

CR42A6

A2-6

42

7

25 (2549)

55 (5608)

6000

8.2

CR60A6

A2-6

60

7

30 (3059)

65 (6628)

5000

13

CR80A8

A2-8

80

7

35 (3568)

73 (7443)

4000

21

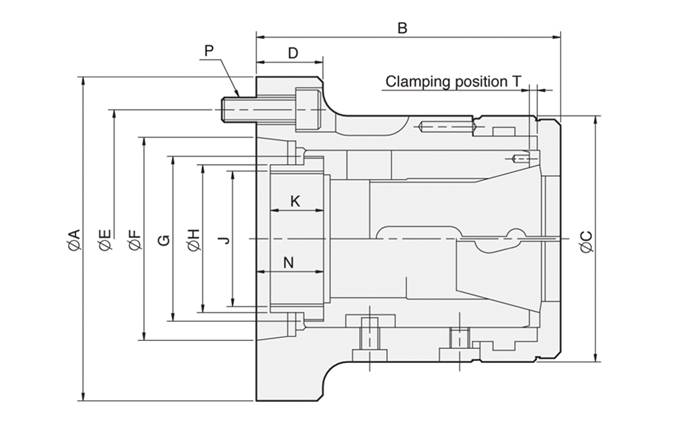

DIM
Model

A

B

C

D

E

F

G

H

J
max.

K

N

P

T

CR26A4

112

103.5

85

30

82.55

63.513

M50xP1.5

45

M40xP1.5

15

21.7

3-M10

2.3

CR30A4

112

103.5

85

30

82.55

63.513

M50xP1.5

45

M40xP1.5

15

21.7

3-M10

2.3

CR42A5

135

124

100

27

104.78

82.563

M66xP1.5

60

M55xP2.0

25

27.4

4-M10

3.1

CR42A6

170

124

100

32

133.35

106.375

M66xP1.5

66

M60xP2.0

22

27.4

4-M12

3.1

CR60A6

170

145

130

27

133.35

106.375

M90xP1.5

80

M74xP2.0

30

29.9

4-M12

3.1

CR80A8

220

170

156

35

171.45

139.719

M114xP2.0

99

M90xP2.0

27.5

32.4

6-M16

6.1

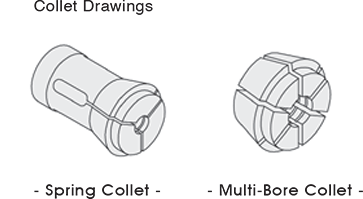

Capacities
Chuck

MULTIBORE

SPRING COLLET

NO.

Cat.No. / ○ / / □

Cat.No. / ○ / / □

CR26

M-667 / 26 / 22 / 18

161E / 8744 / 30 / 26 / 18

CR30

M-669 / 30 / 26 / 21

163E / 4249 / 30 / 26 / 21

CR42

M-673 / 42 / 36 / 30

173E / 4728 / 42 / 36 / 30

CR60

M-677 / 60 / 52 / 42

185E / 4291 / 60 / 52 / 42

CR80

J-660 / 80 / 69 / 56

193E / H-47 / 80 / 69 / 56
