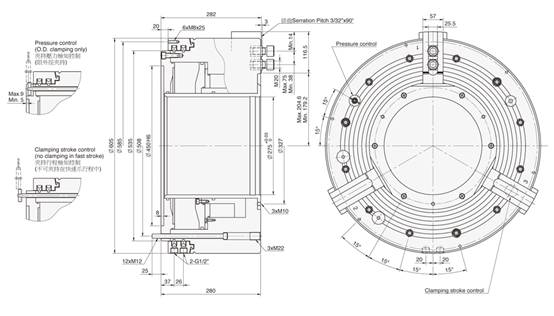

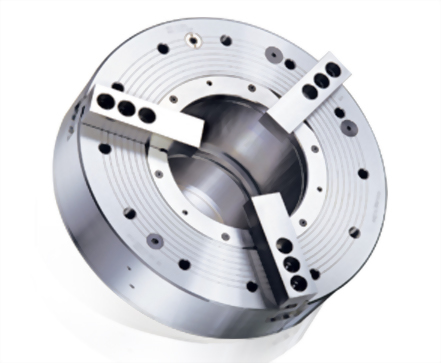

PB-ES(375) 氣壓連接式夾頭 Pneumatic power chuck



l          Air chuck for external clamping with built-in pneumatic cylinder.

l          Fast and clamping jaw stroke.

l          Clamping pressure control.

l          Clamping stroke control.



SPEC
Model

Through
-Hole
(mm)

Total
Stroke / Jaw
(mm)

Fast
Stroke / Jaw
(mm)

Clamping
Stroke / Jaw
(mm)

Piston
Area
(cm2)

Operating
Pressure
Min.-Max.(bar)

Gripping*
Force
(KN.)

Max.
Speed
(r.p.m.)

Weight
(kg)

Moment
Of Inertia
I
(kg
m2 )

Air*
Consumption
(L)

850-375

375

25.4

13.4

125

1342

2-10

250

750

980

110

68

*When operating pressure at 6 bar.
