• N-103-諾氏鑽頭 (僅售印尼)

N-103-諾氏鑽頭 (僅售印尼)

型號 : N-103

Noss Drills 諾氏鑽頭 -   台灣蘇氏SU'S鑽頭   (僅售印尼)


諾氏鑽頭,對於一般被切銷的工作性質均可適用,在鑽孔加工作業上既簡單又經濟。
柄部的〝V〞槽溝是用來配合夾頭的爪子,使鑽頭再作業時不會滑動。
諾氏鑽頭可利用鑽頭加工,鑽削孔徑可達36m/m,甚至更大。

可使用於建築場等戶外作業,既輕便又有效果。

為了保護夾頭,柄部加裝塑膠環套,因此在使用時,就不用擔心有夾持不良之現象,進而提昇效率與壽命,促使加工孔徑更精確。

l          Noss Drill, suitable for general work material, is simple and economic in drilling.

l          The V-slot of shank, which combines with the clutches of chuck, slot the drill during operation.

l          Noss Drill can be used on drilling machines, and the drilling diameter could reach 35mm even larger.

l          It's convenient and efficient to operate at the building sites.

l          For protection of he chuck, the shank is packed with a plastic ring. During operation, the drill will be clamping well to get a more precise hole. The performance and the tool life will also be improved.

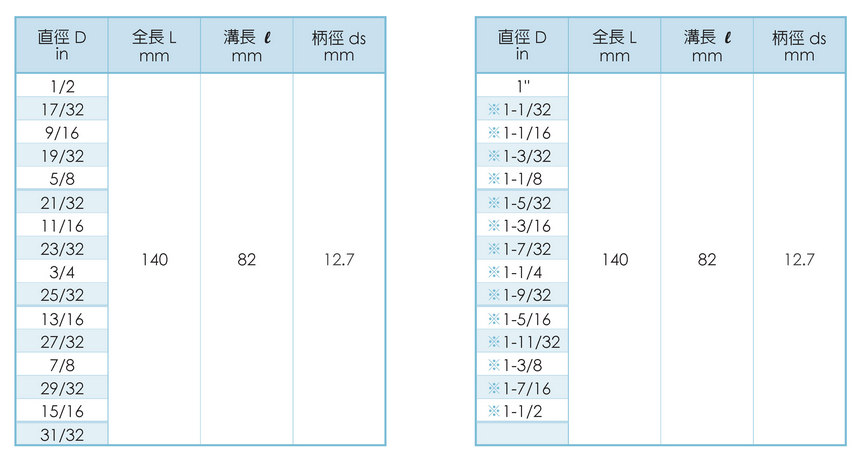

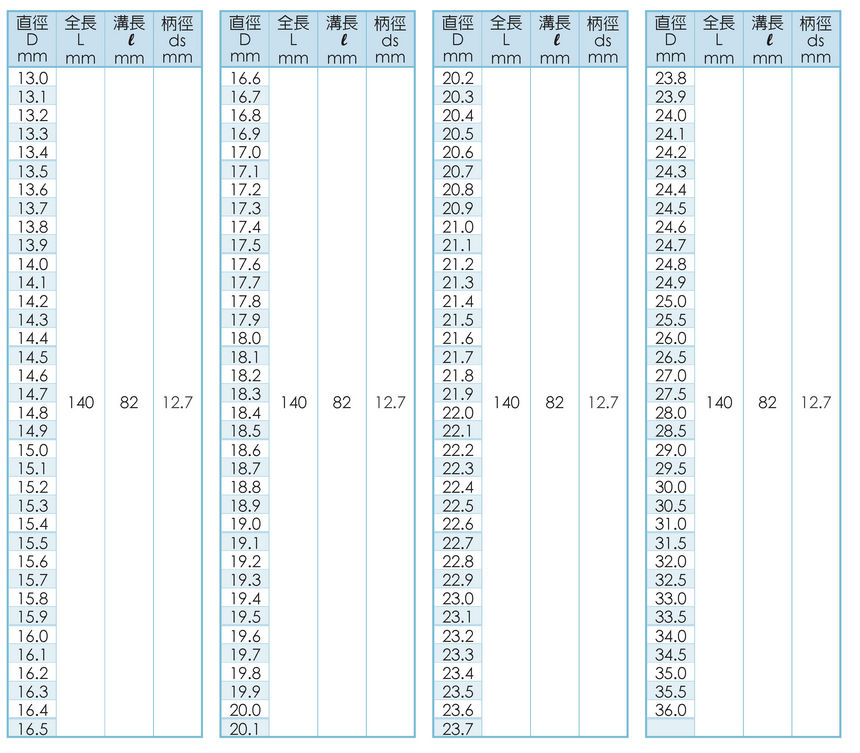

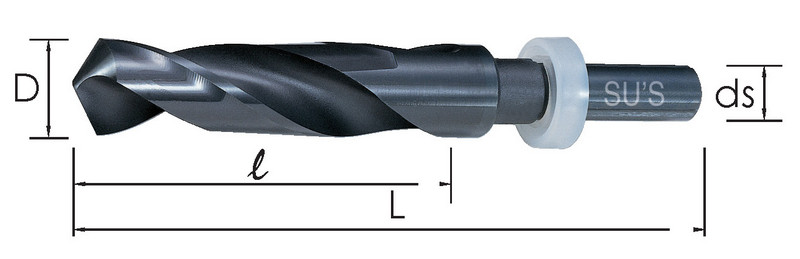

n103-2_px800.jpg諾氏鑽頭尺寸表諾氏鑽頭規格英制
