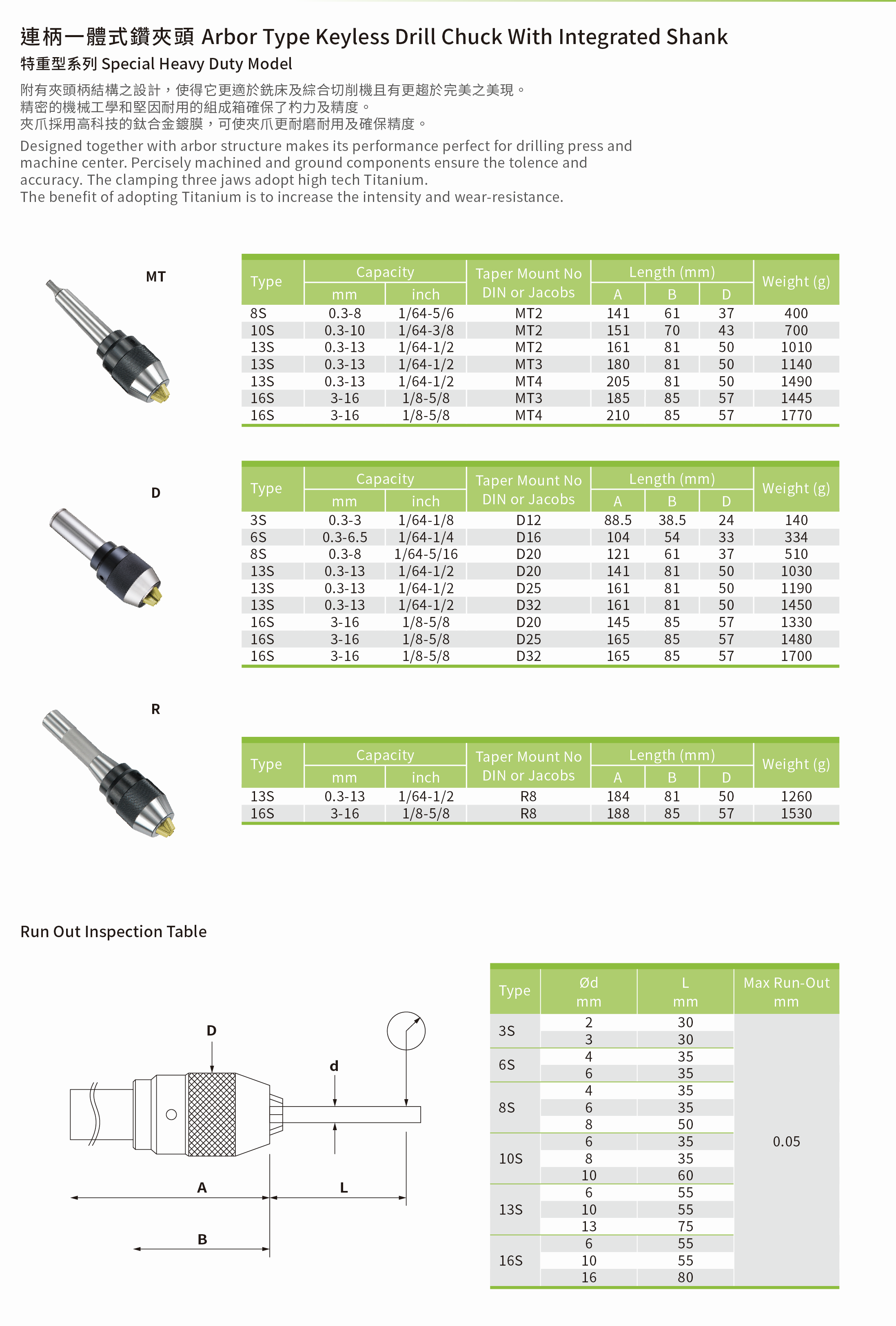

• 自動鑽夾頭 連柄一體式 Keyless Arbor Type Drill Chuck with Integrated Shank

自動鑽夾頭 連柄一體式 Keyless Arbor Type Drill Chuck with Integrated Shank

型號 : MT2 MT3 MT4 D12 D16 D20 D25 D32 R8 8S 10S 13S 16S 3S 6S Keyless Arbor Type 自動鑽夾頭 連柄一體式

自動鑽夾頭 連柄一體式  Keyless Arbor Type Drill Chuck with Integrated Shank




自動鑽夾頭 連柄一體式  Keyless Arbor Type Drill Chuck with Integrated Shank

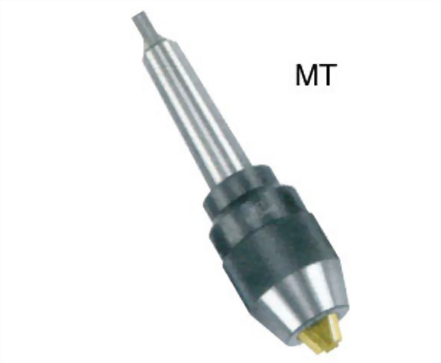

Type
MT

Capacity

Taper Mount No
DIN or Jacobs

Length (mm)

Weight (g)

mm

inch

A

B

D

8S

0.3-8

1/64-5/6

MT2

141

61

37

400

10S

0.3-10

1/64-3/8

MT2

151

70

43

700

13S

0.3-13

1/64-1/2

MT2

161

81

50

1010

13S

0.3-13

1/64-1/2

MT3

180

81

50

1140

13S

0.3-13

1/64-1/2

MT4

205

81

50

1490

16S

3-16

1/8-5/8

MT3

185

85

57

1445

16S

3-16

1/8-5/8

MT4

210

85

57

1770



Type
D

Capacity

Taper Mount No
DIN or Jacobs

Length (mm)

Weight (g)

3S

0.3-3

1/64-1/8

D12

88.5

38.5

24

140

6S

0.3-6.5

1/64-1/4

D16

104

54

33

334

8S

0.3-8

1/64-5/16

D20

121

61

37

510

13S

0.3-13

1/64-1/2

D20

141

81

50

1030

13S

0.3-13

1/64-1/2

D25

161

81

50

1190

13S

0.3-13

1/64-1/2

D32

161

81

50

1450

16S

3-16

1/8-5/8

D20

145

85

57

1330

16S

3-16

1/8-5/8

D25

165

85

57

1480

16S

3-16

1/8-5/8

D32

165

85

57

1700



Type
R

Capacity

Taper Mount No
DIN or Jacobs

Length (mm)

Weight (g)

13S

0.3-13

1/64-1/2

R8

184

81

50

1260

16S

3-16

1/8-5/8

R8

188

85

57

1530



Type

Ød
mm

L
mm

Max Run-Out
mm

16S

2

30

3

30

13S

4

35

6

35

10S

4

35

6

35

8

50

8S

6

35

0.05

8

35

10

60

6S

6

55

10

55

13

75

3S

6

55

10

55

16

80



相關產品

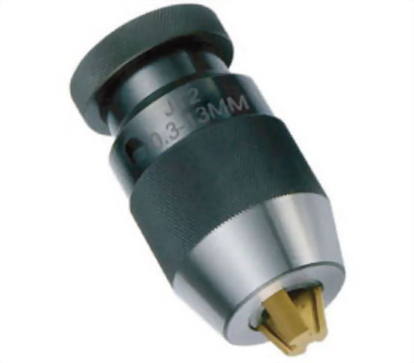

自動鑽夾頭 Keyless Type W/ Titanium Jaws Drill Chuck

自動鑽夾頭 Keyless Type W/ Titanium Jaws Drill Chuck

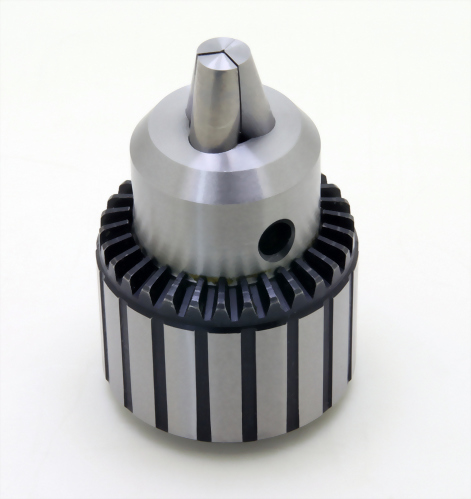

手動鑽夾頭 Key Type Drill Chuck
