NHT-200 二爪三爪共用中空油壓夾頭

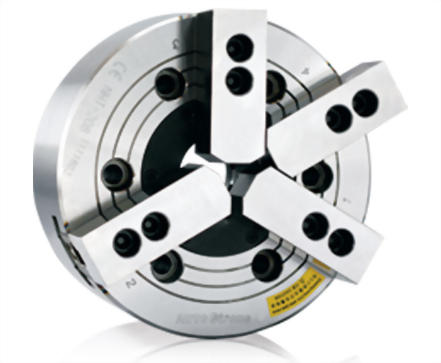

NHT-200 二爪三爪共用中空油壓夾頭  2-jaw and 3-jaw through-hole power chuck (adapter included)



l          Gripping of round or irregular workpiece does not need to change the chuck.

l          The chucks are designed according to ASA B5.9 type A spindle.

l          The chucks are made from high grade alloy steel. All sliding surfaces are hardened and ground to increase running accuracy and longer service life.



SPEC
Model

Through
-Hole
(mm)

Plunger
Stroke
(mm)

Jaw
Stroke
(In Dia.)
(mm)

Max. Pull Force
(kgf)
3 Jaw / 2 Jaw

Max. Gripping Force
(kgf)
3 Jaw / 2 Jaw

Max. Operating
Pressure
(kgf / cm2)
3 Jaw / 2 Jaw

Max.
Speed
(r.p.m.)

Weight
(kg)

Matching
Cylinder

Matching
Hard Jaw

Matching
Soft Jaw

NHT-208A5

Ø52

16

7.4

2243 / 1495

5812 / 3875

17.2 / 12.1

3500

25.2

M1552

HJ06

HC08-1

NHT-208A6

Ø52

16

7.4

2243 / 1495

5812 / 3875

17.2 / 12.1

3500

24.7

M1552

HJ06

HC08-1

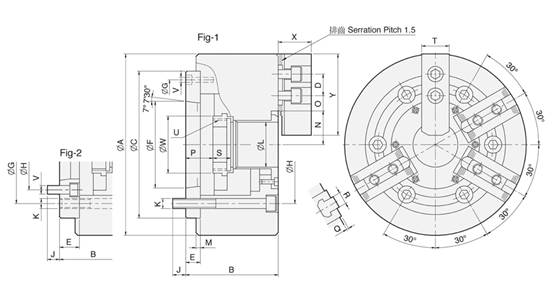

DIM
Model

A

B

C
(H6)

D

E

F

G

H

J

K

L

M

N
max.

O
max.

O
min.

P
max.

P
min.

Q

R

S

T

U
max.

V

W

X

Y

Referenoe

NHT-208A5

210

113

170

20

23

82.563

133.35

104.78

13

6xM12

52

5

41.8

34

7.5

37.5

21.5

2

12

20.5

35

M60x2

6xM10

66

37

73

Fig-2

NHT-208A6

210

107

170

20

17

106.375

150

133.35

17

6xM12

52

5

41.8

34

7.5

31.5

15.5

2

12

20.5

35

M60x2

3xM6

66

37

73

Fig-1
