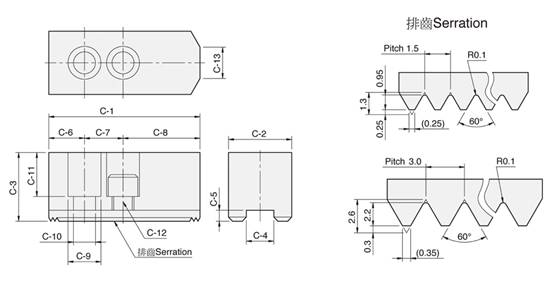

HC 油壓夾頭生爪 Soft jaw for hydraulic power chuck



l          Soft jaws for hydraulic power chucks.

l          CSoft jaw for CNC lathe.



DIM
Model

C-1

C-2

C-3

C-4

C-5

C-6

C-7

C-8

C-9

C-10

C-11

C-12

C-13

Serration
Pitch

Matching
Chuck

3 Jaw
Weight
(kg)

HC04

53

23

23

10

5

9

14

30

14

9

14

M8

30

1.5x60°

N-204

0.45

HC05

62

25

30

10

5

9

14

39

14

9

21

M8

5

1.5x60°

N-205

0.7

HC06

73

31

36

12

5

15

20

38

17

11

21

M10

14

1.5x60°

N-206, NB-306, V-206

1.5

HC08

95

35

37

14

5

24

25

46

19

13

22

M12

16

1.5x60°

N-208, NB-208, V-208

2.4

HC10

110

40

42

16

5

30

30

50

19

13

27

M12

18

1.5x60°

N-210, NB-210, V-210

3.7

HC12

130

50

50

21

5

39

30

61

25

17

33

M16

23

1.5x60°

N-212, NB-212

6.5

HC15

165

62

62

22

8

37

43

85

32

21

38

M20

1.5x60°

N-215, N-218, NB-215, NB-218

12.5

HC08-1

95

35

37

12

5

24

20

51

17

11

21

M10

14

1.5x60°

NHT-208

2.4

HC12-1

130

50

50

18

5

39

30

61

23

15

30

M14

23

1.5x60°

V-212, V-212R

6.6

HC15-1

165

62

62

25.5

5

37

43

85

32

21

38

M20

1.5x60°

V-215, V-218, V-215R, V-218R

12.5

HC24-1

180

64

70

25

9

40

60

80

32

21

45

M20

3.0x60°

N-220, N-224, V-221, V-224,V-221R,V-224R

15.8

HC32-1

210

74

90

25

9

40

80

90

32

21

65

M20

3.0x60°

V-232

29.2

HC15-2

156

64

70

26

9

34

50

72

32

21

45

M20

3.0x60°

V-215(P3.0).V-218(P3.0).

13.4





Soft jaw for draw down power chuck



DIM
Model

C-1

C-2

C-3

C-4

C-5

C-6

C-7

C-8

C-9

C-10

C-11

C-12

C-13

Matching
Chuck

3 Jaw
Weight
(kg)

Reference

DR-06

70

35

34

10

6

43

10

23

15.5

21

M14

2.5

DR-6

1.5

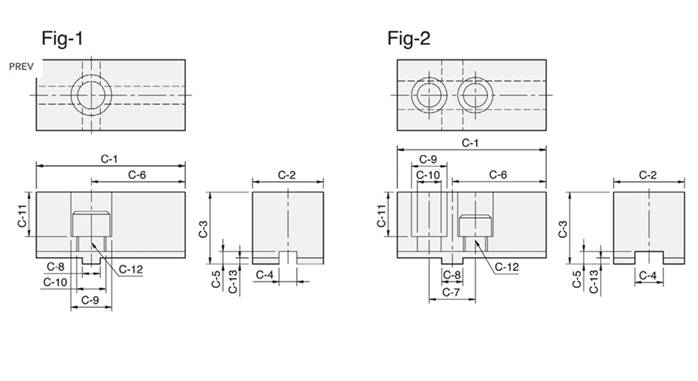

Fig-1

DR-08

84

40

44.5

16

7

53

26

12

20

13.5

29

M12

3.5

DR-8

2.7

Fig-2




Soft jaw for ball swing lock chuck



DIM
Model

C-1

C-2

C-3

C-4

C-5

C-6

C-7

C-9

C-10

C-11

C-12

Matching
Chuck

3 Jaw
Weight
(kg)

BL-12

108

70

70

57.1

3.3

19

44.45

25

17

59

M16

BL-12

10.6

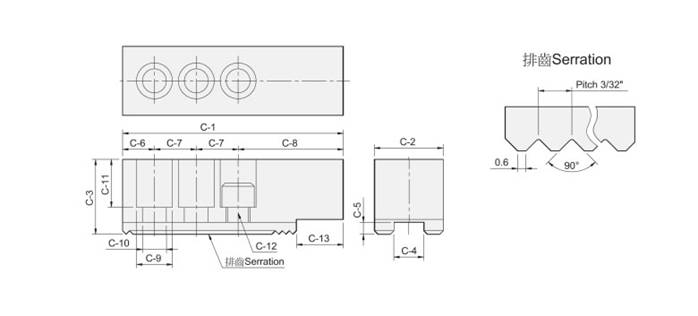

Soft jaw for pneumatic power chuck



DIM
Model

C-1

C-2

C-3

C-4

C-5

C-6

C-7

C-8

C-9

C-10

C-11

C-12

C-13

Matching Chuck

3 Jaw Weight (kg)

PB600

205

60

60

25.5

6

25

38

104

32

21

44

M20

55

PB-ES600

13.5

PB850

320

80

80

30

7

35

60

165

38

26

53

M24

110.5

PB-ES850

40.2
