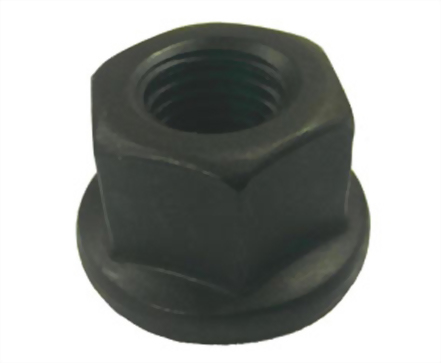

法蘭螺帽 CK-FN
法蘭螺帽 CK-FN Flange nut
-
用途: 旋入牙桿與其他組件匹配用來固定挾持工件
-
材質；S45C，表面染黑皮膜處理
-
熱處理硬度：HRC32±5°
-
產品規格: 英制 3/8”/1/2”/5/8”/3/4”7/8”/1”； 公制 M8/ M10/M12
/M14/M16/M18/M20/M24
|
Order no. |
A (metric) |
B |
C |
D |
E |
|
FNM-12021 |
M8X1.25 |
8 |
18 |
2 |
13 |
|
FNM-13031 |
M10X1.5 |
13 |
22 |
4 |
17 |
|
FNM-14041 |
M12X1.75 |
17 |
30 |
4 |
21 |
|
FNM-14545 |
M14X2.0 |
17 |
30 |
4 |
21 |
|
FNM-15051 |
M16X2.0 |
22 |
35 |
5 |
26 |
|
FNM-16061 |
M18X2.5 |
25 |
42 |
7 |
32 |
|
FNM-17071 |
M20X2.5 |
27 |
42 |
7 |
32 |
|
FNM-17575 |
M22X2.5 |
29 |
45 |
7 |
36 |
|
FNM-18081 |
M24X3.0 |
32 |
50 |
7 |
41 |
|
Order no. |
A (Inch) |
B |
C |
D |
E |
|
FN-12021 |
5/16"-18 |
12 |
20 |
2 |
14 |
|
FN-13031 |
3/8"-16 |
13 |
22 |
4 |
17 |
|
FN-14041 |
1/2"-12 |
17 |
30 |
4 |
21 |
|
FN-14042 |
1/2"-13UNC |
17 |
30 |
4 |
21 |
|
FN-15051 |
5/8"-11 |
22 |
35 |
5 |
26 |
|
FN-16061 |
3/4"-10 |
27 |
42 |
7 |
32 |
|
FN-17071 |
7/8"-9 |
29 |
45 |
7 |
36 |
|
FN-18081 |
1"-8 |
32 |
50 |
7 |
41 |
|
