MH 中實迴轉油壓缸

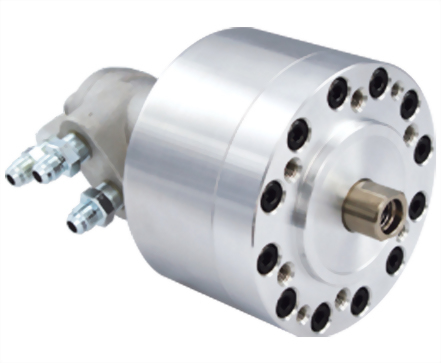

MH 中實迴轉油壓缸Non through-hole rotary hydraulic cylinder
l Compact, low inertla, light weight cylinder :
Manufuctured by aluminium alloy, this cylinder is light weight design to reduce the loading of spindle.
l High speed :
This balanced design cylinder is light weight, compact and maintains outstanding stability during high speed operation.
l Long life :
High quality cylinder seals and high accuracy surface finish on components to ensure the long life of these cylinders.
|
SPEC |
Piston |
Piston Area |
Max. Draw Bar Force |
Piston |
Max. |
Max. |
Moment |
Weight |
Total |
|
MH80 |
80 |
47.7 / 42.8 |
15.5(1580) / 13.9(1417) |
15 |
3.5(35.7) |
6000 |
0.005 |
5.1 |
0.4 |
|
MH100 |
100 |
75.4 / 70.5 |
24.5(2498) / 22.9(2335) |
20 |
3.5(35.7) |
5500 |
0.0125 |
6.6 |
0.4 |
|
MH125 |
125 |
121.1 / 114 |
39.3(4007) / 37(3773) |
25 |
3.5(35.7) |
5500 |
0.02 |
8.4 |
0.4 |
|
MH150 |
150 |
176 / 160 |
66(6730) / 60(6118) |
30 |
4.0(40.8) |
4000 |
0.047 |
10.4 |
0.8 |
|
DIM |
B |
D |
E |
F |
G |
G |
H |
J |
K |
L |
M |
N1 |
N2 |
P |
Q |
R |
T |
U |
S |
|
MH80 |
112 |
90 |
65 |
25 |
45 |
30 |
6 |
73.5 |
103 |
6-M8x16 |
M16x2.0x32 |
3/8" |
1/4" |
45 |
15.5 |
30.5 |
38 |
13.5 |
22 |
|
MH100 |
135 |
100 |
80 |
25 |
45 |
25 |
6 |
88.5 |
103 |
6-M10x19 |
M16x2.0x32 |
3/8" |
1/4" |
45 |
15.5 |
30.5 |
38 |
13.5 |
22 |
|
MH125 |
160 |
130 |
110 |
30 |
51 |
26 |
6 |
95.5 |
103 |
6-M12x20 |
M20x2.5x32 |
3/8" |
1/4" |
45 |
15.5 |
30.5 |
38 |
13.5 |
27 |
|
MH150 |
190 |
130 |
110 |
45 |
50 |
20 |
6 |
107 |
103 |
12-M12x20 |
M30x3.5x40 |
3/8" |
1/4" |
45 |
15.5 |
30.5 |
38 |
13.5 |
38 |
