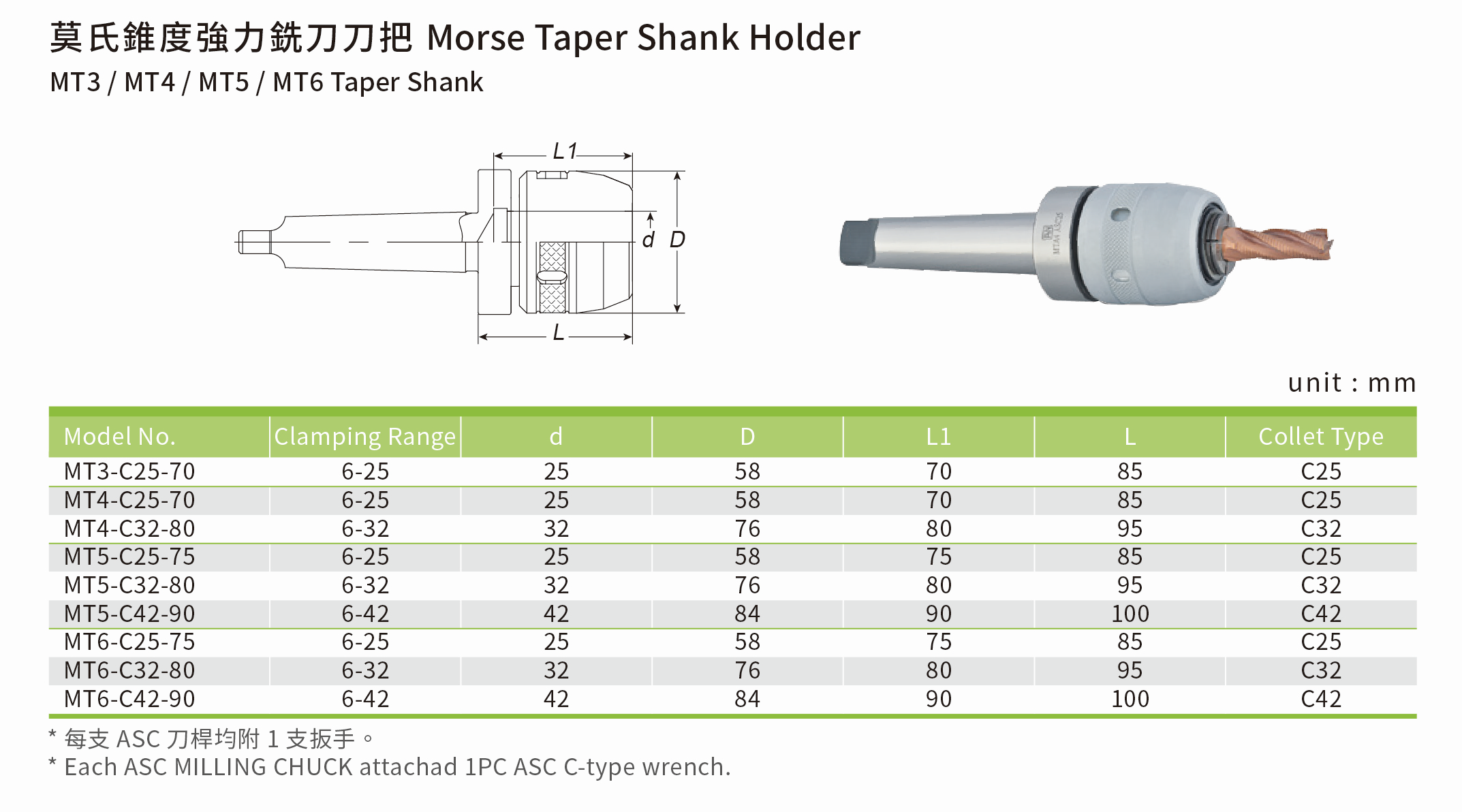

莫式錐度強力銑刀刀桿
Morse Taper Shank Holder 莫式錐度強力銑刀刀桿
Morse Taper Shank Holder 莫式錐度強力銑刀刀桿
|

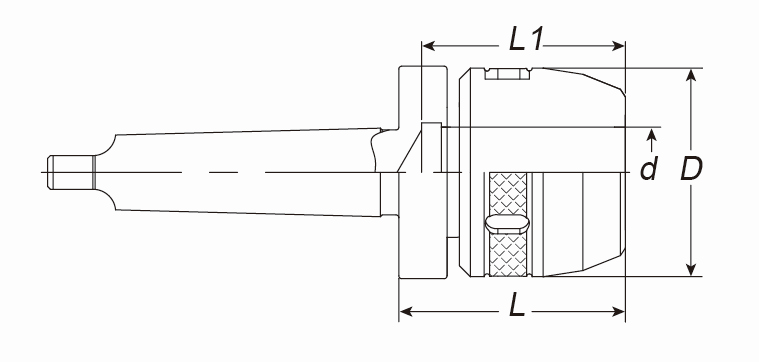

Model No. |
Clamping Range |
d |
D |
L1 |
L |
Collet Type |
|
MT3-C25-70 |
6-25 |
25 |
58 |
70 |
85 |
C25 |
|
MT4-C25-70 |
6-25 |
25 |
58 |
70 |
85 |
C25 |
|
MT4-C32-80 |
6-32 |
32 |
76 |
80 |
95 |
C32 |
|
MT5-C25-75 |
6-25 |
25 |
58 |
75 |
85 |
C25 |
|
MT5-C32-80 |
6-32 |
32 |
76 |
80 |
95 |
C32 |
|
MT5-C42-90 |
6-42 |
42 |
84 |
90 |
100 |
C42 |
|
MT6-C25-75 |
6-25 |
25 |
58 |
75 |
85 |
C25 |
|
MT6-C32-80 |
6-32 |
32 |
76 |
80 |
95 |
C32 |
|
MT6-C42-90 |
6-42 |
42 |
84 |
90 |
100 |
C42 |
