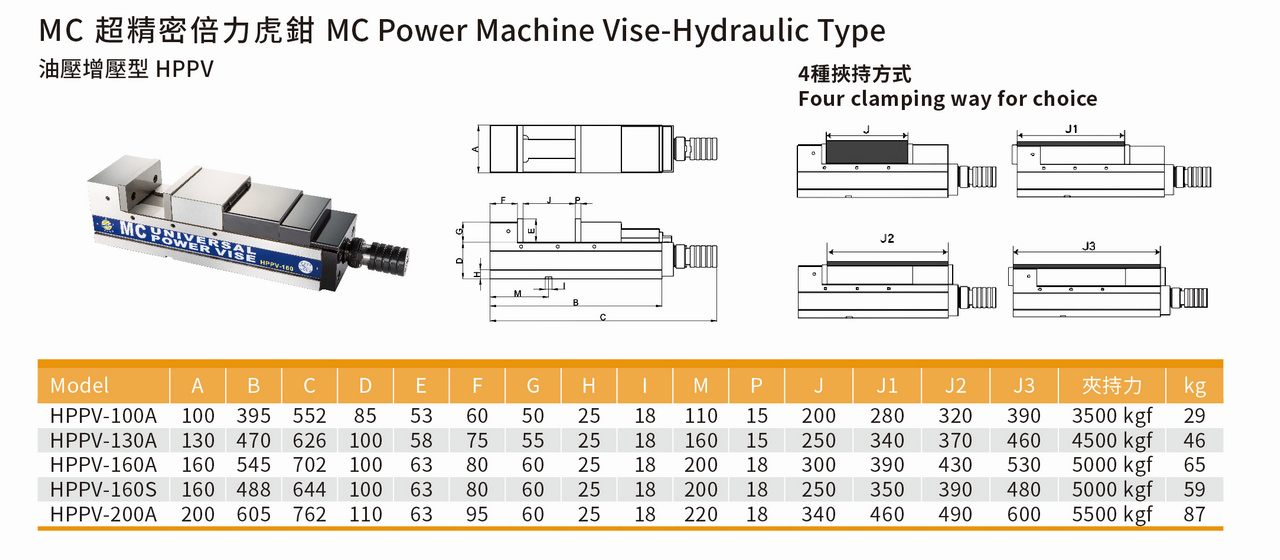

MC精密倍力虎鉗-油壓增壓型 HPPV -MC POWER MACHINE VISE-HYDRAULIC TYPE
l The vise is made by precision processing and grinding processes, it's suitable for vertical / horizontal machine centers to precision processing.
l Vise body material is high ductility of spherical graphite cast iron (FCD600) integral product design, vise both sides of the slide hardened heat (HRC50°), ensure high precision and high wear resistance, high tensile strength.
l Jaw hardened heat (HRC55 °).
l Angle lock semi-sphere can be generated under the power of the lock, removes the workpiece to be lifted.
l Mechanism design（patent design） with rapid pressurization and high clamping force of the unique characteristics of the pressuring mechanism (highest up to 5500 kgf).
l The vise has four clamping ways for client to choice.
l The vise with anti-litter design prevents iron filings drop into the vise, and iron filings easily discharged inside the interior and extend its lifetime.
l These vises have fixed specifications. Many vises will be used together at the same time.
