高速精密車床 S & M series

型號 : Lathe S M S430 S480 S530 M560 M660

高速精密車床 S & M series

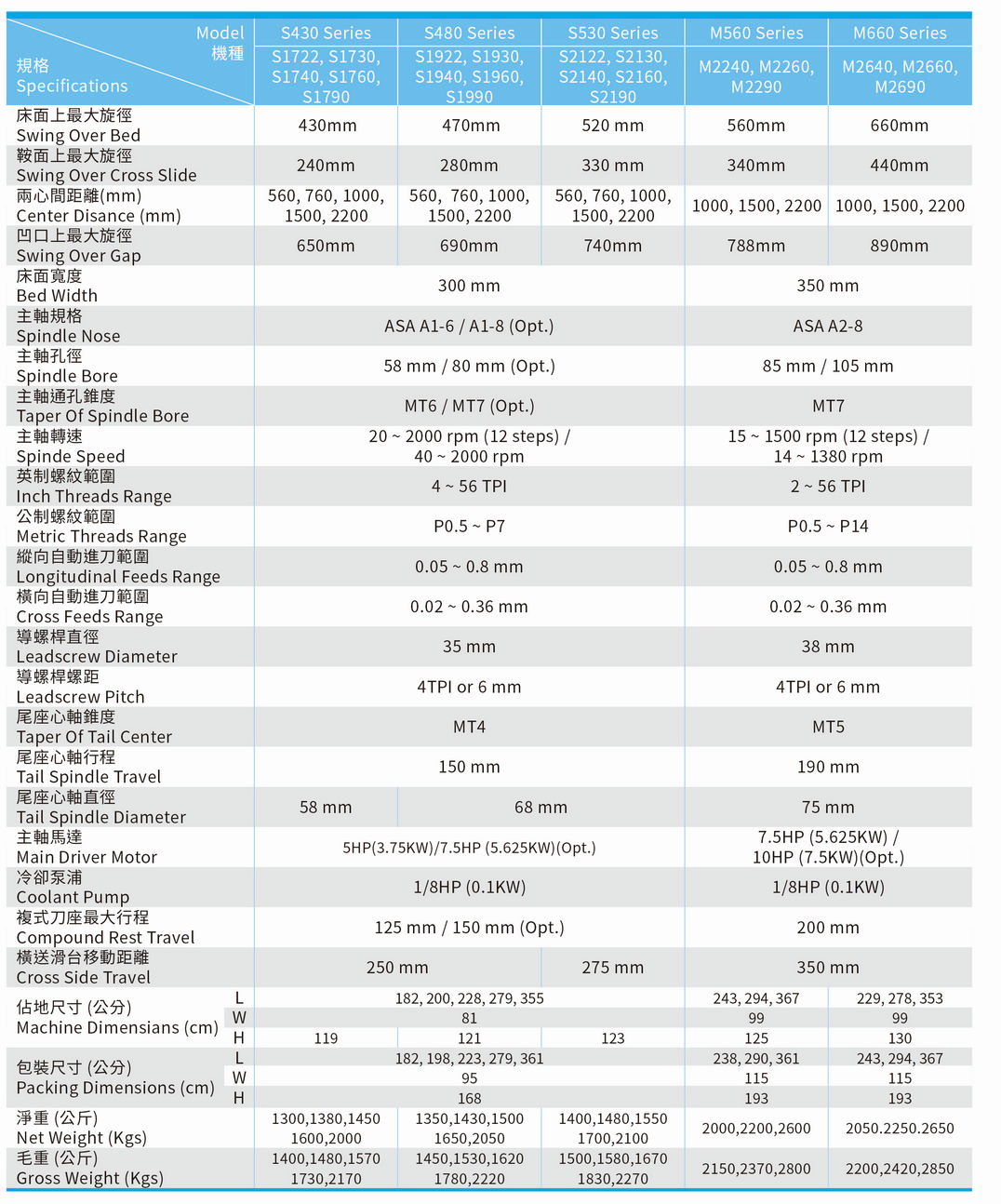

SPECIFICATIONS

S 430 SERIES

S430 Series

Specifications   /   Model

S1722

S1730

S1740

S1760

S1790

Swing Over Bed

430 mm (17")

Swing Over Cross Slide

240 mm (9-1/2")

Center Height

215 mm (8-1/2")

Distance Between Centers

560 mm (22")

760 mm (30")

1000 mm (40")

1500 mm (60")

2200 mm (90")

Swing Over Gap

650 mm (25-1/2")

Width Of Bed

300 mm (11-4/5")

Spindle Nose

ASA D1 - 6 / D1 - 8 ( Opt. )

Spindle Bore

58 mm (2-1/4") / 80 mm (3") Opt. )

Taper of Spindle Bore

MT 6 / MT 7 Opt.

Range of Spindle Speed

20 ~ 2000 R.P.M. ( 12 steps )-spindle bore :58mm /40 ~ 2000 R.P.M. ( 12 steps )-spindle bore :80mm

Inch Threads Range

4 ~ 56 T.P.I.

Metric Threads Range

P 0.5 ~ P 7

Longitudinal Feeds Range

0.05 ~ 0.82 mm (0.002-0.032")

Cross Feeds Range

0.02 ~ 0.4 mm (0.001-0.0094")

Leadscrew Diameter

35 mm (1-1/3")

Leadscrew Pitch

4 TPI or 6 mm

Taper of Tail Center

MT 4

Tail Spindle Travel

150 mm (5-7/8")

Tail Spindle Diameter

58 mm (2-1/4")

Main Drive Motor

5HP (3.75KW) / 7.5HP (5.625KW) ( Opt. )

Coolant Pump

1/8 HP (0.1KW)

Compound Rest Travel

125 mm (4-7/8")

Cross Slide Travel

245 mm (9-2/3")

Machine Dimensions (cm)

165 x 81 x 119

189 x 81 x 119

215 x 81 x 119

265 x 81 x 119

342 x 81 x 119

Packing Dimension (cm)

182 x 95 x 168

200 x 95 x 168

228 x 95 x 168

279 x 95 x 168

355 x 95 x 168

Net Weight

1500

1680

1760

2050

2405

Gross Weight

1600

1780

1860

2200

2555

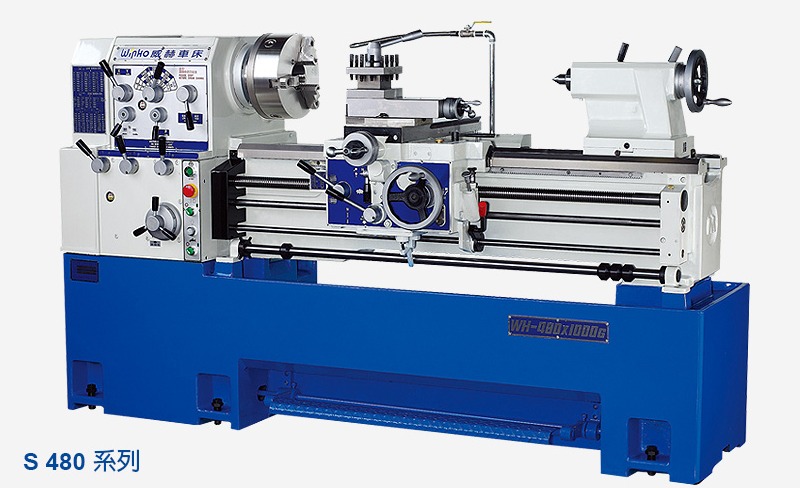

S 480 SERIES

S480 Series

Specifications   /   Model

S1922

S1930

S1940

S1960

S1990

Swing Over Bed

470 mm (18-1/2")

Swing Over Cross Slide

280 mm (11")

Center Height

235 mm (9-1/4")

Distance Between Centers

560 mm (22")

760 mm (30")

1000 mm (40")

1500 mm (60")

2200 mm (90")

Swing Over Gap

690 mm (27-1/8")

Width Of Bed

300 mm (11-4/5")

Spindle Nose

ASA D1 - 6 / D1 - 8 ( Opt. )

Spindle Bore

58 mm (2-1/4") / 80 mm (3") Opt. )

Taper of Spindle Bore

MT 6 / MT 7 Opt.

Range of Spindle Speed

20 ~ 2000 R.P.M. ( 12 steps )-spindle bore :58mm /40 ~ 2000 R.P.M. ( 12 steps )-spindle bore :80mm

Inch Threads Range

4 ~ 56 T.P.I.

Metric Threads Range

P 0.5 ~ P 7

Longitudinal Feeds Range

0.05 ~ 0.82 mm (0.002-0.032")

Cross Feeds Range

0.02 ~ 0.4 mm (0.001-0.0094")

Leadscrew Diameter

35 mm (1-1/3")

Leadscrew Pitch

4 TPI or 6 mm

Taper of Tail Center

MT 4

Tail Spindle Travel

150 mm (5-7/8")

Tail Spindle Diameter

68 mm (2-2/3")

Main Drive Motor

7.5HP (5.625KW) / 10HP (7.5KW) ( Opt. )

Coolant Pump

1/8 HP (0.1KW)

Compound Rest Travel

125 mm (4-7/8")

Cross Slide Travel

245 mm (9-2/3")

Machine Dimensions (cm)

165 x 81 x 122

189 x 81 x 122

215 x 81 x 122

265 x 81 x 122

342 x 81 x 122

Packing Dimension (cm)

182 x 95 x 168

200 x 95 x 168

228 x 95 x 168

279 x 95 x 168

355 x 95 x 168

Net Weight

1540

1720

1800

2075

2465

Gross Weight

1640

1820

1900

2225

2615



S 530 SERIES

S530 Series

Specifications   /   Model

S2122

S2130

S2140

S2160

S2190

Swing Over Bed

520 mm (20-1/2")

Swing Over Cross Slide

330 mm (13")

Center Height

260 mm (10-1/4")

Distance Between Centers

560 mm (22")

760 mm (30")

1000 mm (40")

1500 mm (60")

2200 mm (90")

Swing Over Gap

740 mm (29-1/8")

Width Of Bed

300 mm (11-4/5")

Spindle Nose

ASA D1 - 8

Spindle Bore

80 mm (3")

Taper of Spindle Bore

MT 7

Range of Spindle Speed

20 ~ 2000 R.P.M. ( 12 steps )-spindle bore :58mm /40 ~ 2000 R.P.M. ( 12 steps )-spindle bore :80mm

Inch Threads Range

4 ~ 56 T.P.I.

Metric Threads Range

P 0.5 ~ P 7

Longitudinal Feeds Range

0.05 ~ 0.82 mm (0.002-0.032")

Cross Feeds Range

0.02 ~ 0.4 mm (0.001-0.0094")

Leadscrew Diameter

35 mm (1-1/3")

Leadscrew Pitch

4 TPI or 6 mm

Taper of Tail Center

MT 4

Tail Spindle Travel

150 mm (5-7/8")

Tail Spindle Diameter

68 mm (2-2/3")

Main Drive Motor

7.5HP (5.625KW) / 10HP (7.5KW) ( Opt. )

Coolant Pump

1/8 HP (0.1KW)

Compound Rest Travel

125 mm (4-7/8")

Cross Slide Travel

275 mm (10-4/5")

Machine Dimensions (cm)

165 x 81 x 125

189 x 81 x 125

215 x 81 x 125

265 x 81 x 125

342 x 81 x 125

Packing Dimension (cm)

182 x 95 x 168

200 x 95 x 168

228 x 95 x 168

279 x 95 x 168

355 x 95 x 168

Net Weight

1580

1760

1810

2135

2565

Gross Weight

1680

1860

1910

2285

2675



M 560 SERIES

M560 Series

Specifications   /   Model

M2240

M2260

M2290

Swing Over Bed

560 mm (22")

Swing Over Cross Slide

340 mm (13-1/3")

Center Height

280 mm (11")

Distance Between Centers

1000 mm (40")

1500 mm (60")

2200 mm (90")

Swing Over Gap

788 mm (31")

Width Of Bed

350 mm (13-3/4")

Spindle Nose

ASA D1 - 8

Spindle Bore

85 mm (3-1/3") / 105 mm (4") Opt. )

Taper of Spindle Bore

MT 7

Range of Spindle Speed

15 ~ 1500 R.P.M.  / 14 ~ 1380 R.P.M. ( 12 steps )

Inch Threads Range

2 ~ 56 T.P.I.

Metric Threads Range

P 0.5 ~ P 14

Longitudinal Feeds Range

0.05 ~ 0.82 mm (0.002-0.032")

Cross Feeds Range

0.02 ~ 0.4 mm (0.001-0.0094")

Leadscrew Diameter

38 mm (1-1/2")

Leadscrew Pitch

4 TPI or 6 mm

Taper of Tail Center

MT 5

Tail Spindle Travel

165 mm (6-1/2")

Tail Spindle Diameter

75 mm (2-7/8")

Main Drive Motor

7.5HP (5.625KW) / 10HP (7.5KW) ( Opt. )

Coolant Pump

1/8 HP (0.1KW)

Compound Rest Travel

200 mm (7-7/8")

Cross Slide Travel

300 mm (11-4/5")

Machine Dimensions (cm)

229 x 99 x 125

278 x 99 x 125

353 x 99 x 125

Packing Dimension (cm)

238 x 115 x 70

290 x 115 x 70

361 x 115 x 70

Net Weight

2200

2400

2750

Gross Weight

2350

2550

2900




相關產品

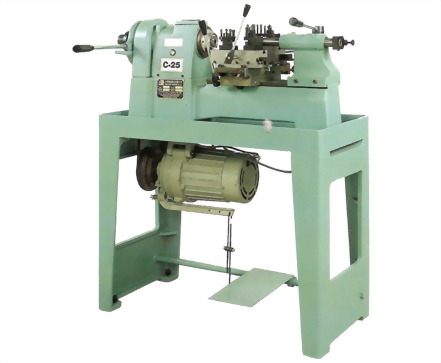

精密桌上型車床
