• 精密快速鋼爪虎鉗 CC-103G

精密快速鋼爪虎鉗 CC-103G

型號 : CC-103G

精密快速鋼爪虎鉗 CC-103G  SUPER QUICK JAW VISE

精密快速鋼爪虎鉗 CC-103G SUPER QUICK JAW VISE

精密快速鋼爪虎鉗 CC-103G SUPER QUICK JAW VISE

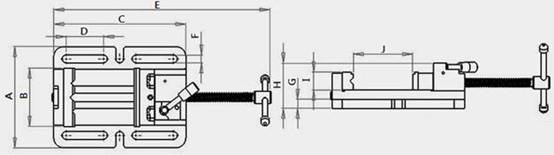

MODEL

A

B

C

D

E

F

G

H

I

CC-103G-4

180

104

235

66.5

390

14

16.5

73

32

CC-103G-6

240

156

310

85

530

17

18

93

38



MODEL

J

Clamping Force (TON)

N.W. KG

CC-103G-4

105

1.0

6.5

CC-103G-6

152

1.8

12.2







Feature

l          Suitable for clamping work piece on drill press machine or milling machine.

l          Designed with solid structure, main body is made of FC15, assemble a pair of heat treated steel jaws with hardness HRC45° ~ 50°.

l          Jaw pair and handle are surface treated by black oxide finish.

l          Front fixed prismatic jaw with cross V - grooves is designed for clamping work piece firmly in both vertical & horizontal directions.

l          All sliding surfaces of each part, base face & jaw pair are grinded for assuring the flatness as well as the verticalness are controlled in 0.05/100mm accuracy.
