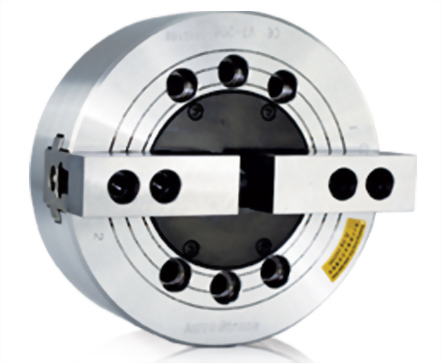

VT&VIT 二爪及四爪中實油壓夾頭(不含連接板) 2-jaw and 4-jaw wedge type non through-hole power chuck (adapter excluded)



l          Suitable for special applications :
Used to hold special shape work pieces, such as square bar or flanges which is not possible clamping by 3 jaw chuck.

l          Interchangable with V or VA series.

l          Basic dimensions are the same as V type.

l          High performance as V type.



SPEC
Model

Jaws

Plunger
Stroke
(mm)

Jaw
Stroke
(In Dia.)
(mm)

Max.
Pull
Force
(kgf)

Max.
Gripping
Force
(kgf)

Max.
Operating
Pressure
(kgf / cm2)

Max.
Speed
(r.p.m.)

Weight
(kg)

Moment
Of Inertia
I
(kg
m2 )

Matching
Cylinder

Matching
Hard Jaw

Matching
Soft Jaw

Gripping
O.D. Range
(mm)

VT-206

2

20

9.2

1224

3569

17.3

5200

12

0.045

MS105C

HJ06

HC06

Ø18-Ø165

VT-208

2

21

9.7

1683

5098

16.3

4500

22

0.13

MS125C

HJ08

HC08

Ø26-Ø210

VT-210

2

25

8.8

1988

7342

19.4

4000

33.5

0.29

MS125C

HJ10

HC10

Ø26-Ø254

VT-212

2

30

10.5

2804

10605

18.4

3300

59

0.7

MS150C

HJ12-1

HC12-1

Ø26-Ø304

VIT-212

4

30

10.5

4181

15907

27.5

2800

63.4

0.74

MS150C

HJ12-1

HC12-1

Ø26-Ø304

VT-215

2

35

16

5557

16927

21.7

3000

100.6

1.7

MS200C

HJ15-1

HC15-1

Ø68-Ø381

VIT-218

4

35

16

8362

25391

32.6

2300

119

2.975

MS200C

HJ15-1

HC15-1

Ø130-Ø450

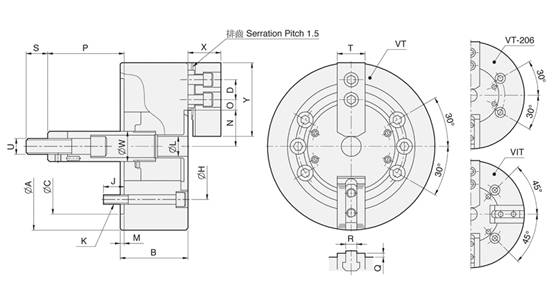

DIM
Model

A

B

C

D

H

J

K

L

M

N
max.

O
max.

O
min.

P
max.

P
min.

Q

R

S

T

U
max.

W

X

Y

VT-206

165

74

140

20

104.78

14

4-M10x70

21

5

38.7

14.75

7.25

104.6

84.6

4

12

36

31

M16x2.0

34

39

73

VT-208

210

85

170

25

133.35

20

6-M12x85

25

5

46.85

22.25

10.25

132

111

5

14

36

35

M20x2.5

38

41

95

VT-210

254

89

220

30

171.45

18

6-M16x85

34

5

51.1

30.75

11.25

158

133

5

16

36

40

M20x2.5

45

46

110

VT-212

304

106

220

30

171.45

24

6-M16x105

34

6

61

48.75

12.75

163

133

5

18

36

50

M20x2.5

50

54

130

VIT-212

304

106

220

30

171.45

23

4-M16x105

34

6

61

48.75

12.75

163

133

5

18

36

50

M20x2.5

50

54

130

VT-215

381

114

300

43

235

29

6-M20x115

6

77.5

50.25

23.25

104

69

2

25.5

55

50

M30x3.5

60

63

165

VIT-218

450

114

300

43

235

29

4-M20x115

6

108

50.25

23.25

90

57

2

25.5

55

50

M30x3.5

60

63

165
