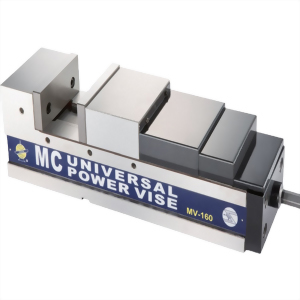

CNC精密倍力虎鉗-一般型 MFV
CNC精密倍力虎鉗-一般型 MFV - CNC PREICISION MACHINE VISE
|
MODEL |
A |
B |
C |
D |
F |
G |
H |
I |
M |
J |
J1 |
J2 |
J3 |
G.W. KG |
|
MFV -100 |
100 |
310 |
400 |
85 |
75 |
50 |
25 |
18 |
110 |
150 |
200 |
200 |
300 |
30 |
|
MFV -130 |
130 |
410 |
500 |
100 |
80 |
55 |
25 |
18 |
135 |
240 |
300 |
300 |
400 |
45 |
|
MFV -160 |
160 |
490 |
580 |
110 |
85 |
60 |
25 |
18 |
200 |
310 |
370 |
370 |
480 |
62 |
|
MFV -200 |
200 |
530 |
620 |
110 |
85 |
60 |
25 |
18 |
220 |
350 |
410 |
410 |
520 |
84 |
Features：
l The vise is made by precision and grinding processes, it's suitable for vertical / horizontal machine centers.
l Vise body material is high ductility of spherical graphite cast iron (FCD600) integral product design, vise both sides of the slide hardened heat (HRC50 °), ensure high precision and high wear resistance, high tensile strength.
l CNC precision vise owns special nut with structure of under the pressure, can be generated under the power of the lock, remove the clamping jaw flouts and the workpiece titles.
l The vise has four clamping way for client to choice.
l The vise with anti-litter design prevents iron filings drop into the vise, and iron filings easily discharged and extend the period of use.
l These vises have fixed specifications. Many vises will be used together at the same time.
