MM 高速精短型中空迴轉油壓缸

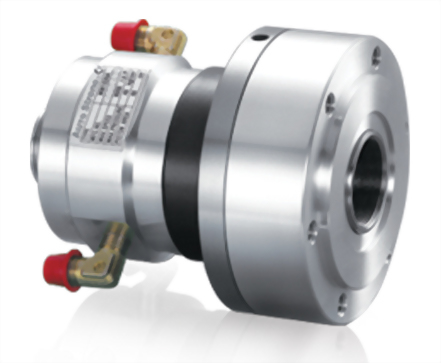

MM 高速精短型中空迴轉油壓缸 Super high speed through-hole compact rotary hydraulic cylinder



l          Compact hydraulic cylinder design with light weight can reduce the spindle loading while running in high speed.

l          Built-in check valve in safety auto lock and pressure relief valve in case of power failure occur.

l          New model developed for rear installation.



SPEC
Model

Piston
Dia.
(mm)

Piston Area
(cm2)
Push Side / Pull Side

Max. Draw Bar Force
KN(kgf)
Push Side / Pull Side

Piston
Stroke
(mm)

Max.
Operating
Pressure
MPa
(kgf / cm2)

Max.
Speed
(r.p.m.)

Moment
Of Inertia
I
(kg
m2 )

Weight
(kg)

Total
Leakage
L/min

MM1036A

36

64 / 60

23.8(2427) / 22.3(2274)

5

4.0(40.8)

8000

0.013

7

0.8

MM1246A

46

100 / 89

38(3875) / 33(3365)

15

4.0(40.8)

7000

0.026

9.8

3.0



DIM
Model

C

D

E

F

G

H

J

L

T

U

V
max.

V
min.

W
max.

W
min.

B1

C1

F1

G1

H1

J1

L1

M1

Q1

T1

W1

P1

X1

MM1036A

134

115

100

65

48

M42xP1.5

36

52

48

144

10

5

17

12

57

20

6-M10x15

113.5

76

46

10

38

M4x9L

2

M42xP1.5

2

40

MM1246A

155

130

100

80

65

M55xP2.0

46

76

61

179

15

0

40

25

59.5

30

12-M10x20

140

98

59

15

50

M6x10L

6

M52xP1.5

9

50
