SE六爪連動夾頭
SE六爪連動夾頭 6-jaw scroll chuck plain back
l SE types are specially meet for drilling*endmilling*tapping or grinding in tool grinders.
l Huge bore diameter design for wider application of bar workpieces.
l SE type feature gripping for thin tube and high roundness accuracy.
l The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.
|

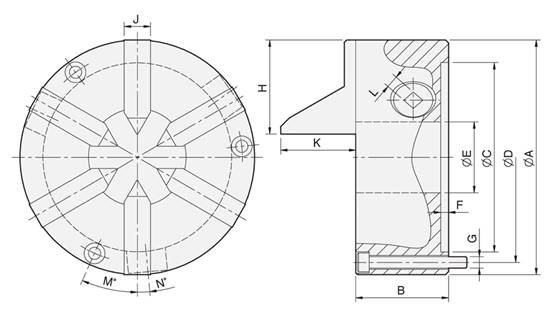

SPEC |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
Allowable |
Gripping |
Max. |
Weight |
Moment |
Gripping Range |
|
O.D. Range / I.D. Range |
|||||||||||||||||||
|
SE-4 |
112 |
66 |
80 |
95 |
32 |
4.8 |
3-M8x65 |
45 |
14 |
39.7 |
8 |
30 |
6.5 |
1.6 |
440 |
1200 |
4 |
- |
Ø2-Ø32 |
|
SE-6 |
165 |
67 |
130 |
147 |
51 |
5.5 |
3-M8x70 |
66.5 |
19 |
40.7 |
10 |
23.3 |
6.2 |
2.8 |
660 |
1200 |
9 |
0.03 |
Ø3-Ø51 |
|
SE-7 |
192 |
76.5 |
155 |
172 |
80 |
5.5 |
3-M10x75 |
77 |
21.5 |
61.5 |
11 |
24 |
5.3 |
3.6 |
850 |
1000 |
14 |
0.06 |
Ø3-Ø81 |
