MS250C/MS300C 中實迴轉油壓缸(含逆止閥、檢知裝置) Non through-hole rotary hydraulic cylinder (valve and switch brackets included)



l          Through-hole for coolant, oil or air with thread for rotary unit.

l          Mounting from the rear or front side.

l          Built-in safety check valves and bracket for proximity switch. (The proximity switches are extra option.)


SPEC
Model

Piston
Dia.
(mm)

Piston Area
(cm2)
Push Side / Pull Side

Max. Draw Bar Force
KN(kgf)
Push Side / Pull Side

Piston
Stroke
(mm)

Max.
Operating
Pressure
MPa
(kgf / cm2)

Max.
Speed
(r.p.m.)

Moment
Of Inertia
I
(kg
m2 )

Weight
(kg)

Total
Leakage
L/min

MS250C

250

481.5 / 453.6

227(23147) / 214(21822)

60

4.9(50)

2000

0.87

78

2

MS300C

300

697.5 / 658.6

262(26716) / 247(25186)

60

4.0(40.8)

1500

1.6

106

3

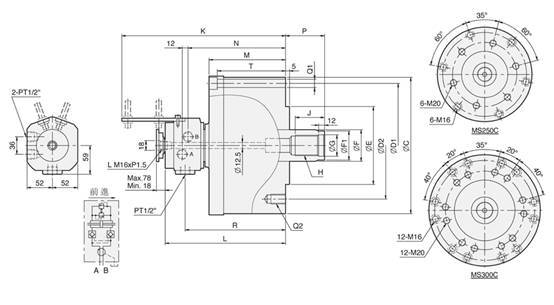

DIM
Model

C

D1

D2

E
(h7)

F

F1

G

H

J

K

L

M

N

P
max.

P
min.

Q1

Q2

R

T

MS250C

300

275

220

160

65

62

44

M42x3.0

60

356

177

177

220

85

25

6-Ø17

6-M20x30

226

160

MS300C

355

330

270

210

75

70

50

M48X3.0

70

359

182

182

223

85

25

12-Ø17

12-M20x30

229

165
