• ML-CM.B 超大孔徑迴轉油壓缸

ML-CM.B 超大孔徑迴轉油壓缸

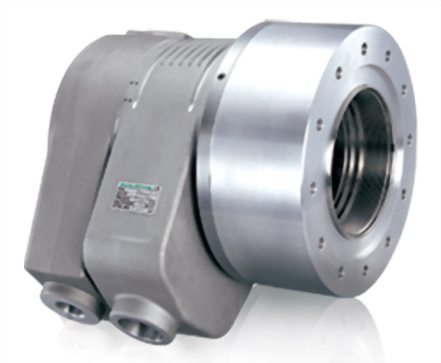

ML-CM.B 超大孔徑迴轉油壓缸 Extra large through-hole rotary hydraulic cylinder



l          Matching for large bore power chucks.

l          Special aluminum alloy steel body, light weight for reducing the spindle loading.

l          Within check valves to maintain the thrust force.

l          Extra large bore design, equipped with coolant collector and detective plate.

l          The proximity switches and mounting bolts are extra option.



SPEC
Model

Piston
Dia.
(mm)

Piston Area
(cm2)
Push Side / Pull Side

Max. Draw Bar Force
KN(kgf)
Push Side / Pull Side

Piston
Stroke
(mm)

Max.
Operating
Pressure
MPa
(kgf / cm2)

Max.
Speed
(r.p.m.)

Moment
Of Inertia
I
(kg
m2 )

Weight
(kg)

Total
Leakage
L/min

ML2814CM28B

285

394 / 350

116.8(11910) / 106.8(10584)

42

3.3(33.6)

2000

1.08

87

11

ML2816CM28B

285

394 / 350

116.8(11910) / 106.8(10584)

42

3.3(33.6)

2000

0.90

72

11

ML3320CM33B

335

515.7 / 416.9

152.9(15591) / 136.9(13960)

42

3.3(33.6)

1600

1.09

103

14

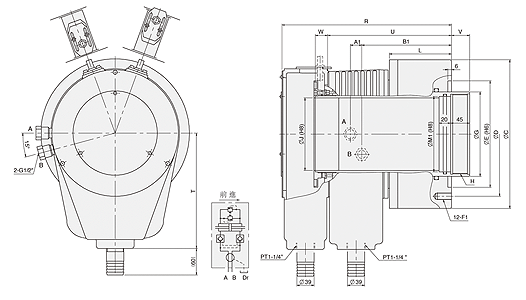

DIM
Model

C

D

E
(H6)

G

H

J

L

R

T

U

V
max.

V
min.

W
max.

W
min.

A1

B1

F1

M1

ML2814CM28B

335

280

240

190

M158x3.0

145

140

382

260

279

41

-1

67

25

18

202

M16x32L

150

ML2816CM28B

335

280

240

190

M180x3.0

166.5

140

382

260

279

41

-1

67

25

18

202

M16x32L

170

ML3320CM33B

390

320

240

230

M215x3.0

205

147

392

260

292

41

-1

67

25

18

210

M20x32L

210
