• MS-C 中實迴轉油壓缸(含逆止閥、檢知裝置)

MS-C 中實迴轉油壓缸(含逆止閥、檢知裝置)

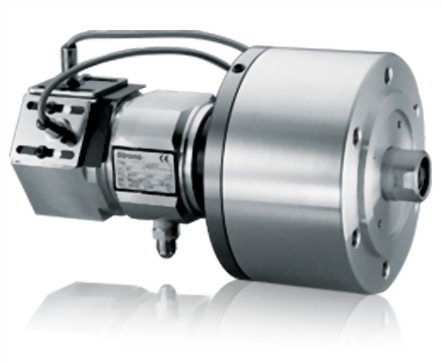

MS-C 中實迴轉油壓缸(含逆止閥、檢知裝置) Non through-hole rotary hydraulic cylinder (valve and switch brackets included)



l          Built-in safty check valves and detective plate.

l          The proximity switches are extra option.



SPEC
Model

Piston Area
(cm2)
Push Side / Pull Side

Max. Draw Bar Force
KN(kgf)
Pull Side

Piston
Stroke
(mm)

Max.
Operating
Pressure
MPa
(kgf / cm2)

Max.
Speed
(r.p.m.)

Moment
Of Inertia
I
(kg
m2 )

Weight
(kg)

Total
Leakage
L/min

MS105C

84 / 79

29 (2957)

20

4.0(40.8)

6000

0.0125

7.6

0.8

MS125C

120 / 113

42 (4283)

25

4.0(40.8)

6000

0.022

10.5

0.8

MS125C35

120 / 113

42 (4283)

35

4.0(40.8)

6000

0.022

10.5

0.8

MS150C

174 / 160

60 (6118)

30

4.0(40.8)

5500

0.047

14

0.8

MS200C

312 / 290

108 (11013)

35

4.0(40.8)

5500

0.097

22.5

0.8

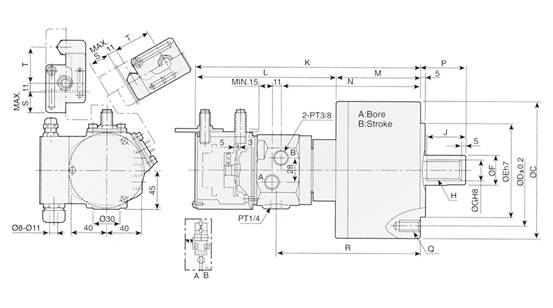

DIM
Model

A

B

C

D

E

F

G

H

j

K

L

M

N

P
max.

P
min.

Q

R

S

T

MS105C

105

20

135

100

80

30

21

M20xP2.5

35

257

168

89

152

45

25

6-M10x20

158

23

46

MS125C

125

25

160

130

110

35

25

M24xP3.0

44

265

168

97

160

51

26

6-M12x24

166

23

46

MS125C35

125

30

160

130

110

35

25

M24xP3.0

44

269

168

101

164

57

22

6-M12x24

170

23

46

MS150C

150

30

190

130

110

45

31

M30xP3.5

45

274

168

106

169

56

26

12-M12x24

175

23

46

MS200C

200

35

245

145

120

55

37

M36xP4.0

60

288

168

122

183

69

34

12-M16x30

189

28

46
