• M 高速中空迴轉油壓缸

M 高速中空迴轉油壓缸


高速中空迴轉油壓缸 High speed through-hole rotary hydraulic cylinder



l          Compact and light weight :
Comparing with the regular product, it is compact (reduced to MAX 95mm) and lighter (weighted MAX 4.5kg). It’s more stable to reduce the burden of the machinery at high speed turning.

l          The largest bore : Comparing with the regular product, it has about 20% larger bore diameter forutilizing the capacity of machinery.

l          The safety structure : It can retain the gripping force by check valve.



SPEC
Model

Piston
Dia.
(mm)

Piston Area
(cm2)
Push Side / Pull Side

Max. Draw Bar Force
KN(kgf)
Push Side / Pull Side

Piston
Stroke
(mm)

Max.
Operating
Pressure
MPa
(kgf / cm2)

Max.
Speed
(r.p.m.)

Moment
Of Inertia
I
(kg
m2 )

Weight
(kg)

Total
Leakage
L/min

M0928

90

53.2 / 48.3

19.9(2029) / 18(1835)

10

40.8

8000

0.006

5.5

3.0

M1036

105

71 / 68.5

26(2651) / 25(2549)

15

40.8

8000

0.011

8.6

3.0

M1038

105

71 / 66

26(2651) / 24.5(2498)

15

40.8

8000

0.011

8.5

3.0

M1236

125

100 / 89

38(3875) / 33(3365)

15

40.8

7000

0.019

13

3.0

M1246

125

100 / 89

38(3875) / 33(3365)

15

40.8

7000

0.019

12

3.0

M1546

155

161 / 154

60(6118) / 57.8(5894)

22

40.8

6200

0.056

18

3.9

M1552

155

161 / 150

60(6118) / 56(5710)

22

40.8

6200

0.052

16.8

3.9

M1868

180

198 / 197

74(7546) / 73.5(7495)

25

40.8

4700

0.098

28

4.2

M1870

180

198 / 183

74(7546) / 69(7036)

25

40.8

4700

0.095

26.5

4.2

M1875

180

198 / 183

74(7546) / 69(7036)

25

40.8

4700

0.095

26

4.2

M1878

180

198 / 183

74(7546) / 69(7036)

25

40.8

4700

0.095

25.5

4.2

M2085

205

252 / 234

94(9585) / 88(8973)

30

40.8

3800

0.15

37.5

4.5

M2091

205

252 / 234

94(9585) / 88(8973)

30

40.8

3800

0.15

37

4.5

M2511

250

348 / 336

124(12644) / 120(12236)

23

40.8

2800

0.45

57

7.0

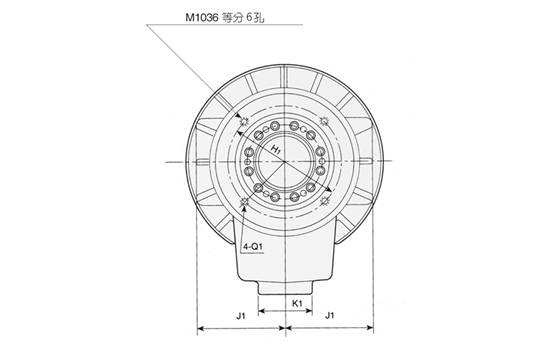

DIM
Model

C1

E1

F1

G1

H1

J1

K1

L1

M1

N1

O1

P1

Q1

R1

S1

T1

U1

W1

X1

B

C

M0928

25

8-M6x10

6-M8x15

110

76

58

44

15

34

53

14

4

4-M4x7

5

PT 1/4"

5

116

M34x1.5

32

85

120

M1036

25

6-M5x10

6-M10x17

126

88

68

53

15

38

64

14

4

6-M5x12

4

PT 3/8"

6

136

M44x1.5

42

101

136

M1038

25

6-M5x10

6-M10x17

126

88

68

53

15

40

64

14

4

6-M5x12

4

PT 3/8"

6

136

M44x1.5

42

101

136

M1236

25

4-M6x12

12-M10x20

135

98

76

47

15

38

76

14

4

4-M5x12

6

PT 1/2"

6

169

M52x1.5

50

99

154.5

M1246

30

4-M6x12

12-M10x20

135

98

76

47

15

50

76

14

4

4-M5x12

6

PT 1/2"

6

169

M52x1.5

50

99

154.5

M1546

30

4-M6x12

12-M10x20

145

110

86

47

15

50

85

14

4

4-M6x12

7

PT 1/2"

6

187.5

M58x1.5

56

103

190

M1552

30

4-M6x12

12-M10x20

145

110

86

47

15

55

85

16

4

4-M6x12

7

PT 1/2"

6

187.5

M58x1.5

56

103

190

M1868

35

4-M6x12

12-M10x20

166

155

101

47

15

70

108

16

4

4-M6x12

7.5

PT 1/2"

6

220

M84x2

81

126

215

M1870

35

4-M6x12

12-M10x20

166

155

101

47

15

75

108

16

4

4-M6x12

7.5

PT 1/2"

6

220

M84x2

81

126

215

M1875

35

4-M6x12

12-M10x20

166

155

101

47

15

80

108

16

4

4-M6x12

7.5

PT 1/2"

6

220

M84x2

81

126

215

M1878

35

4-M6x12

12-M10x20

166

155

101

47

20

82

108

16

4

4-M6x12

7.5

PT 1/2"

6

220

M84x2

81

126

215

M2085

35

4-M6x12

12-M12x24

182

165

110

47

20

89

120

16

4

4-M6x12

7

PT 1/2"

6

267

M99x2

96

141

240

M2091

35

4-M6x12

12-M12x24

182

165

110

47

15

95

120

16

4

4-M6x12

7

PT 1/2"

6

267

M99x2

96

141

240

M2511

45

4-M6x12

12-M16x32

197

206

129

55

20

123

160

18

5

4-M6x12

7

PT 1/2"

6

294

134.6

186

310



DIM
Model

D

E

F

G

H

J

K

L

N

P

Q

S

T

U

V
max.

V
min.

W
max.

W
min.

X

Z

A1

B1

M0928

100

80

65

44

M38x1.5

28

25

54

44

59

65

90

105

156

14

4

35

25

3

5

9

108

M1036

115

100

65

48

M42x1.5

36

32

62

55

73

88

104

115

174.5

15

0

39

24

2.5

5

11

120.5

M1038

115

100

65

50

M44x1.5

38

32

71

55

73

88

104

115

174.5

15

0

39

24

2.5

5

11

120.5

M1236

130

100

80

65

M42x1.5

36

36

67

64

85

98

118

114

179

15

0

40

25

4

5

11

126.5

M1246

130

100

80

65

M55x2

46

36

67

64

85

98

118

114

179

15

0

40

25

4

5

11

126.5

M1546

170

130

85

65

M55x2

46

36

75

73

96

114

137

130

191

22

0

47

25

4

5

11

136

M1552

170

130

85

70

M60x2

52

36

75

73

96

114

137

130

191

22

0

47

25

4

5

11

136

M1868

190

160

120

85

M75x2

68

36

84

98

121

140

166

160

225

25

0

50

25

4

5

17.5

152.5

M1870

190

160

120

95

M78x2

70

36

84

98

121

140

166

160

225

25

0

50

25

4

5

17.5

152.5

M1875

190

160

120

95

M85x2

75

36

84

98

121

140

166

160

225

25

0

50

25

4

5

17.5

152.5

M1878

190

160

120

95

M87x2

78

36

84

98

121

140

166

160

225

25

0

50

25

4

5

17.5

152.5

M2085

215

180

140

110

M93x2

85

36

93

108

138

158

182

185

248

30

0

55

25

3

5

21

166.5

M2091

215

180

140

110

M100x2

91

36

93

108

138

158

182

185

248

30

0

55

25

3

5

21

166.5

M2511

215

230

166

140

M130x2

117.5

36

89

148

178

190

232

215

290

24

1

38

15

3

6

27

184.5
