焊刃式千鳥刃T型刀
焊刃式千鳥刃T型刀
型號 :
ATTX

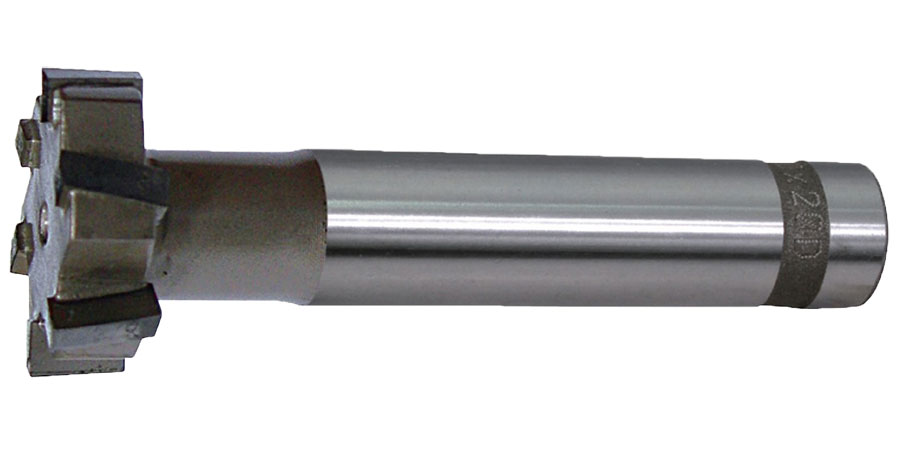

焊刃式千鳥刃T型刀
焊刃式千鳥T型刀適用於剖溝加工，主要銑削工件T型凹槽或側面凹槽，採左右斜刃（千鳥刃），加工負戴比直刃T型低，更有效斷屑、排屑，大大降低加工阻力。

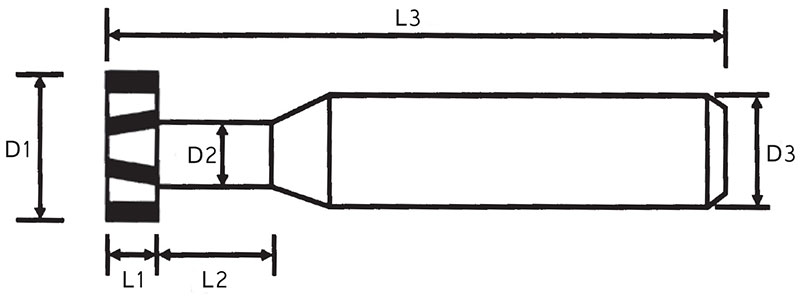

| 產品編號 | 外徑 D1 | 刃長 L1 | 頸徑 D2 | 頸長 L2 | 刃數 | 柄徑 D3 | 全長 L3 |
|---|---|---|---|---|---|---|---|
| ATTX016-03 | 16 | 3 | 8 | 15 | 4 | 12 | 100 |
| ATTX016-04 | 16 | 4 | 8 | 15 | 4 | 12 | 100 |
| ATTX016-05 | 16 | 5 | 8 | 15 | 4 | 12 | 100 |
| ATTX016-06 | 16 | 6 | 8 | 15 | 4 | 12 | 100 |
| ATTX016-08 | 16 | 8 | 8 | 15 | 4 | 12 | 100 |
| ATTX016-10 | 16 | 10 | 8 | 15 | 4 | 12 | 100 |
| ATTX016-12 | 16 | 12 | 8 | 15 | 4 | 12 | 100 |
| ATTX020-03 | 20 | 3 | 11 | 16 | 6 | 16 | 100 |
| ATTX020-04 | 20 | 4 | 11 | 16 | 6 | 16 | 100 |
| ATTX020-05 | 20 | 5 | 11 | 16 | 6 | 16 | 100 |
| ATTX020-06 | 20 | 6 | 11 | 16 | 6 | 16 | 100 |
| ATTX020-08 | 20 | 8 | 11 | 16 | 6 | 16 | 100 |
| ATTX020-10 | 20 | 10 | 11 | 16 | 6 | 16 | 100 |
| ATTX020-12 | 20 | 12 | 11 | 16 | 6 | 16 | 100 |
| ATTX025-03 | 25 | 3 | 13 | 16 | 6 | 16 | 100 |
| ATTX025-04 | 25 | 4 | 13 | 16 | 6 | 16 | 100 |
| ATTX025-05 | 25 | 5 | 13 | 16 | 6 | 16 | 100 |
| ATTX025-06 | 25 | 6 | 13 | 16 | 6 | 16 | 100 |
| ATTX025-08 | 25 | 8 | 13 | 16 | 6 | 16 | 100 |
| ATTX025-10 | 25 | 10 | 13 | 16 | 6 | 16 | 100 |
| ATTX025-12 | 25 | 12 | 13 | 16 | 6 | 16 | 100 |
| ATTX030-03 | 30 | 3 | 15 | 16 | 6 | 16 | 100 |
| ATTX030-04 | 30 | 4 | 15 | 16 | 6 | 16 | 100 |
| ATTX030-05 | 30 | 5 | 15 | 16 | 6 | 16 | 100 |
| ATTX030-06 | 30 | 6 | 15 | 16 | 6 | 16 | 100 |
| ATTX030-08 | 30 | 8 | 15 | 16 | 6 | 16 | 100 |
| ATTX030-10 | 30 | 10 | 15 | 16 | 6 | 16 | 100 |
| ATTX030-12 | 30 | 12 | 15 | 16 | 6 | 16 | 100 |
| ATTX032-03 | 32 | 3 | 15 | 16 | 6 | 16 | 120 |
| ATTX032-04 | 32 | 4 | 15 | 16 | 6 | 16 | 120 |
| ATTX032-05 | 32 | 5 | 15 | 16 | 6 | 16 | 120 |
| ATTX032-06 | 32 | 6 | 15 | 16 | 6 | 16 | 120 |
| ATTX032-08 | 32 | 8 | 15 | 16 | 6 | 16 | 120 |
| ATTX032-10 | 32 | 10 | 15 | 16 | 6 | 16 | 120 |
| ATTX032-12 | 32 | 12 | 15 | 16 | 6 | 16 | 120 |
| ATTX035-03 | 35 | 3 | 15 | 16 | 6 | 16 | 120 |
| ATTX035-04 | 35 | 4 | 15 | 16 | 6 | 16 | 120 |
| ATTX035-05 | 35 | 5 | 15 | 16 | 6 | 16 | 120 |
| ATTX035-06 | 35 | 6 | 15 | 16 | 6 | 16 | 120 |
| ATTX035-08 | 35 | 8 | 15 | 16 | 6 | 16 | 120 |
| ATTX035-10 | 35 | 10 | 15 | 16 | 6 | 16 | 120 |
| ATTX035-12 | 35 | 12 | 15 | 16 | 6 | 16 | 120 |
| ATTX040-03 | 40 | 3 | 21 | 16 | 6 | 25 | 150 |
| ATTX040-04 | 40 | 4 | 21 | 16 | 6 | 25 | 150 |
| ATTX040-05 | 40 | 5 | 21 | 16 | 6 | 25 | 150 |
| ATTX040-06 | 40 | 6 | 21 | 16 | 6 | 25 | 150 |
| ATTX040-08 | 40 | 8 | 21 | 16 | 6 | 25 | 150 |
| ATTX040-10 | 40 | 10 | 21 | 16 | 6 | 25 | 150 |
| ATTX040-12 | 40 | 12 | 21 | 16 | 6 | 25 | 150 |
| ATTX045-03 | 45 | 3 | 21 | 16 | 8 | 25 | 150 |
| ATTX045-04 | 45 | 4 | 21 | 16 | 8 | 25 | 150 |
| ATTX045-05 | 45 | 5 | 21 | 16 | 8 | 25 | 150 |
| ATTX045-06 | 45 | 6 | 21 | 16 | 8 | 25 | 150 |
| ATTX045-08 | 45 | 8 | 21 | 16 | 8 | 25 | 150 |
| ATTX045-10 | 45 | 10 | 21 | 16 | 8 | 25 | 150 |
| ATTX045-12 | 45 | 12 | 21 | 16 | 8 | 25 | 150 |
| ATTX050-03 | 50 | 3 | 24 | 16 | 8 | 25 | 150 |
| ATTX050-04 | 50 | 4 | 24 | 16 | 8 | 25 | 150 |
| ATTX050-05 | 50 | 5 | 24 | 16 | 8 | 25 | 150 |
| ATTX050-06 | 50 | 6 | 24 | 16 | 8 | 25 | 150 |
| ATTX050-08 | 50 | 8 | 24 | 16 | 8 | 25 | 150 |
| ATTX050-10 | 50 | 10 | 24 | 16 | 8 | 25 | 150 |
| ATTX050-12 | 50 | 12 | 24 | 16 | 8 | 25 | 150 |
| ATTX060-05 | 60 | 5 | 30 | 11 | 10 | 32 | 130 |
| ATTX060-06 | 60 | 6 | 30 | 11 | 10 | 32 | 130 |
| ATTX060-08 | 60 | 8 | 30 | 11 | 10 | 32 | 130 |
| ATTX060-10 | 60 | 10 | 30 | 11 | 10 | 32 | 130 |
| ATTX060-12 | 60 | 12 | 30 | 11 | 10 | 32 | 130 |
| ATTX060-15 | 60 | 15 | 30 | 11 | 10 | 32 | 130 |
| ATTX060-16 | 60 | 16 | 30 | 11 | 10 | 32 | 130 |
| ATTX060-20 | 60 | 20 | 30 | 11 | 10 | 32 | 130 |
| ATTX060-25 | 60 | 25 | 30 | 11 | 10 | 32 | 130 |
| ATTX075-10 | 75 | 10 | 30 | 11 | 14 | 32 | 130 |
| ATTX075-12 | 75 | 12 | 30 | 11 | 14 | 32 | 130 |
| ATTX100-10 | 100 | 10 | 30 | 11 | 16 | 32 | 130 |
| ATTX100-12 | 100 | 12 | 30 | 11 | 16 | 32 | 130 |
| ATTX100-16 | 100 | 16 | 30 | 11 | 16 | 32 | 130 |
