• G-112-深孔用—強力型直柄鑽頭

G-112-深孔用—強力型直柄鑽頭

型號 : G-112

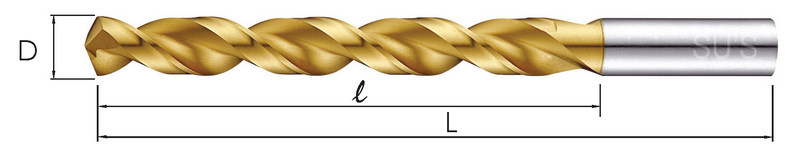

Conical Fluted Straight Shank Twist Drills  深孔用—強力型直柄鑽頭  G-112

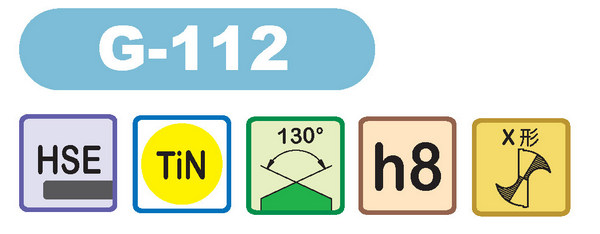

G112 HSE TIN 130 H8 X

‧使用高鈷材質HSE,具有耐高熱,耐磨耗之特性。

‧表面TiN膜層HV2000,摩擦係數小,抗粘著,切削佳。

‧心厚大,使鑽頭更具剛性,對抗彎曲及振幅,相對優越。

‧特殊形狀之螺旋溝槽,排屑順暢及〝X〞削薄,鑿口長度變短,推力負荷減少,適合深孔加工,3倍直徑以上者。

‧適用於一般鋼材、合金鋼、鑄鐵等被切削材。


l          Basic on HSE feartures heat and wear resistance.

l          Surface is coated with TiN HV2000, featuring low friction coefficient, anti-adhere and superior cutting performance.

l          Thick web design provides high rigidity, superior bending-resistance and minimum vibration

l          Special shapes of helical flutes ensure excellent chip removal.Xthinning reduces length of chisel edge and thrust load. The drills are ideal for deep hole drilling with depth over 3 times of drill diameter.

l          Suitable for drilling General Steels, Alloy Steel and Cast Iron, etc.


Conical Fluted Straight Shank Twist Drills 深孔用—強力型直柄鑽頭 G-112Conical Fluted Straight Shank Twist Drills 深孔用—強力型直柄鑽頭 G-112

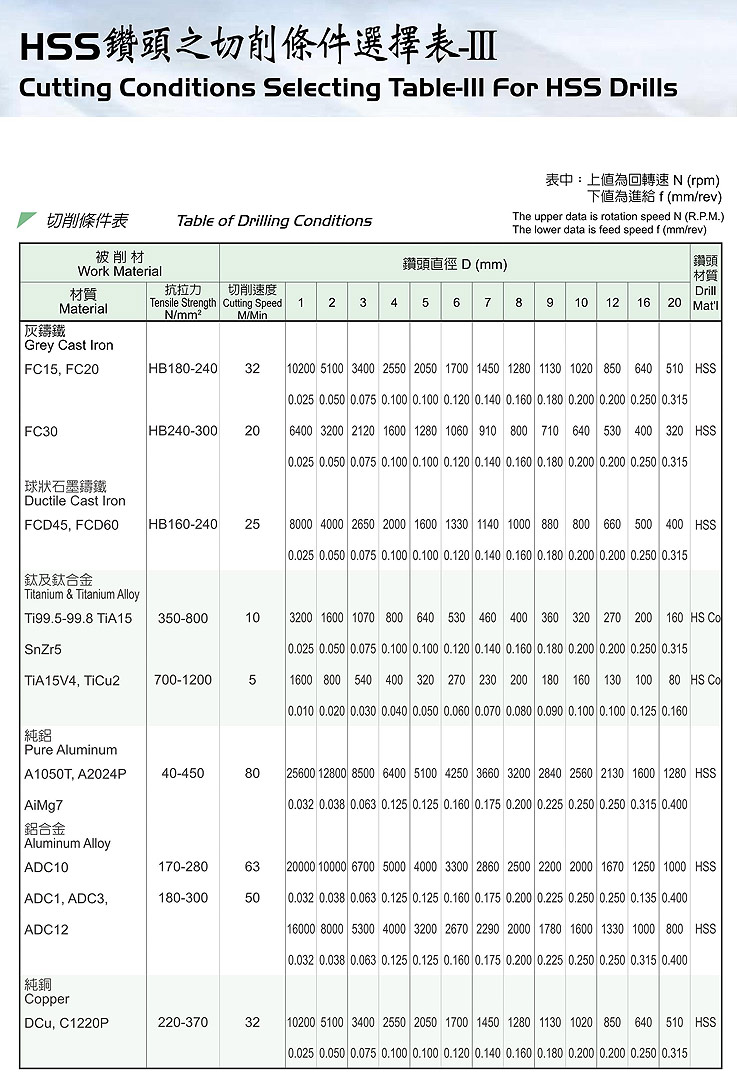

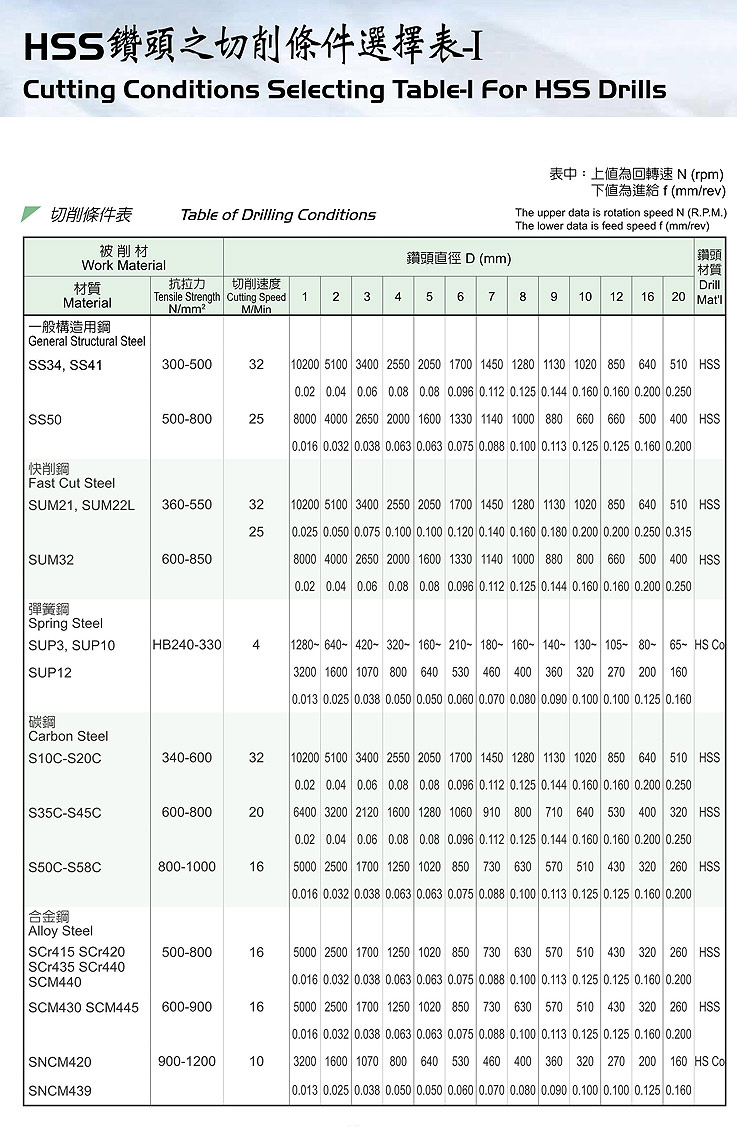

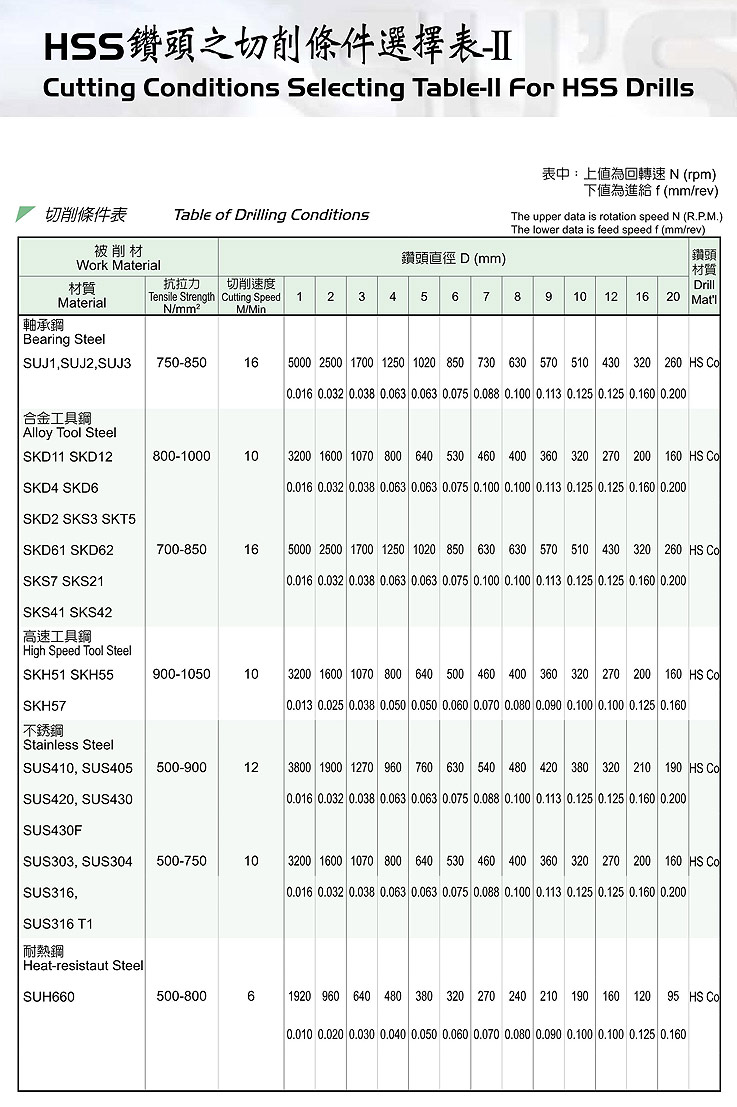

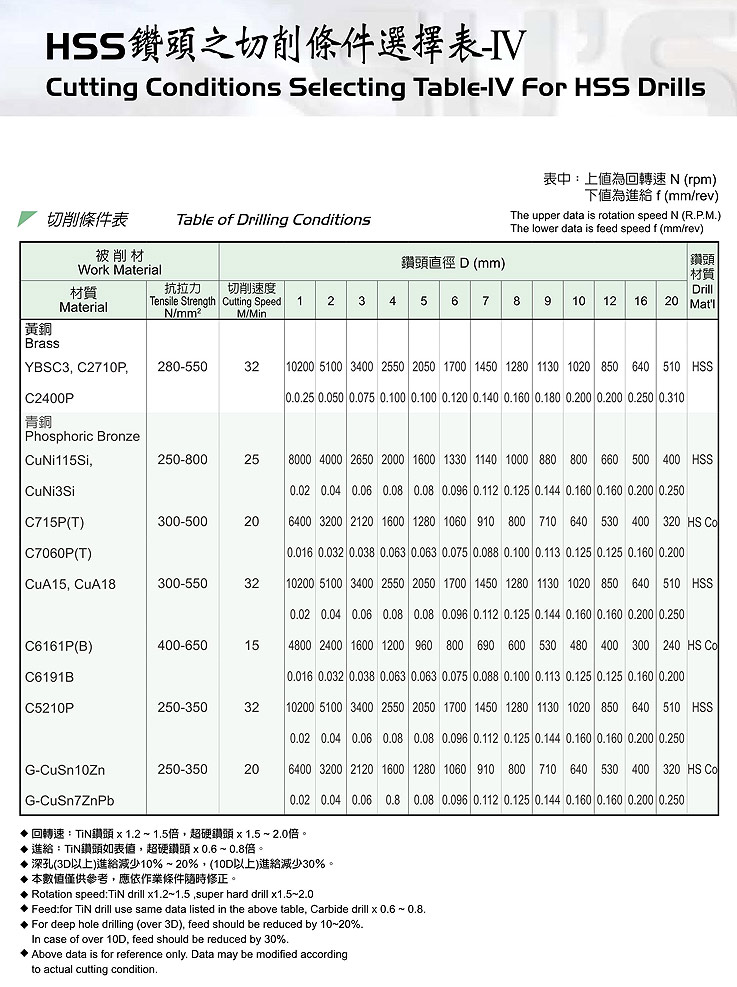

鑽頭切削條件選擇表
