• 雙頭壓板CK-PC

雙頭壓板CK-PC

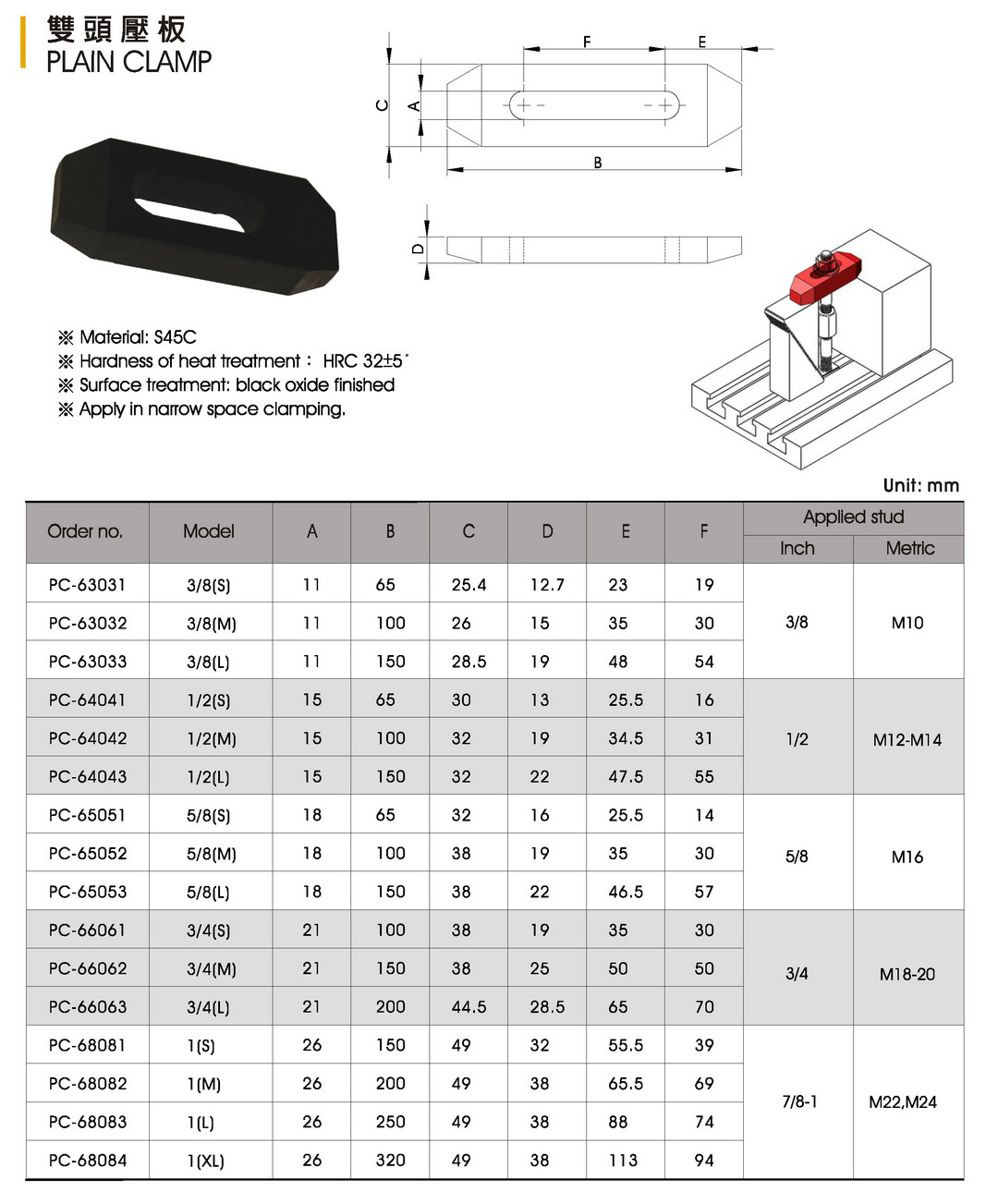

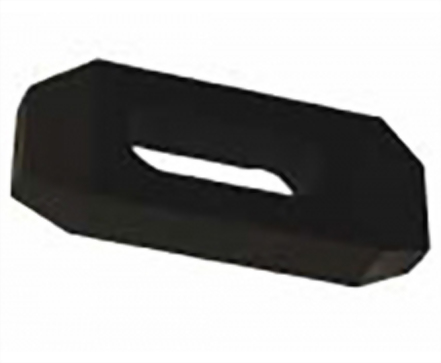

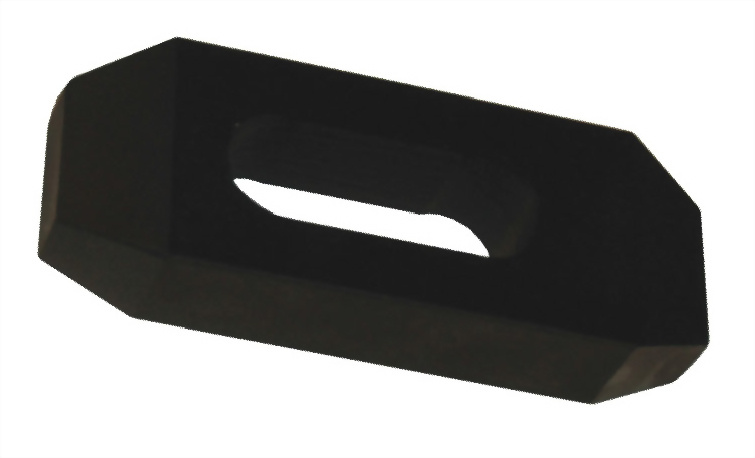

雙頭壓板CK-PC  Plain clamp



l          Purpose:Apply the surface of step clamp onto the surface of step block for fixing the work piece.

l          Material:S45C, black oxide furnished

l          Hardness of heat treatmentHRC32±5°

l          Product spec.:
3/8S 3/8M 3/8L (slot width 11mm)
1/2S 1/2M 1/2L (slot width 15mm)
5/8S 5/8M 5/8L(slot width 18mm)
3/4S 3/4M 3/4L (slot width 21mm)
1S 1M 1L (slot width 26mm)



Order no.

Model

A

B

C

D

E

F

Applied stud

Inch

Metric

PC-63031

3/8(S)

11

65

25.4

12.7

23

19

3/8

M10

PC-63032

3/8(M)

11

100

26

15

35

30

PC-63033

3/8(L)

11

150

28.5

19

48

54

PC-64041

1/2(S)

15

65

30

13

25.5

16

1/2

M12-M14

PC-64042

1/2(M)

15

100

32

19

34.5

31

PC-64043

1/2(L)

15

150

32

22

47.5

55

PC-65051

5/8(S)

18

65

32

16

25.5

14

5/8

M16

PC-65052

5/8(M)

18

100

38

19

35

30

PC-65053

5/8(L)

18

150

38

22

46.5

57

PC-66061

3/4(S)

21

100

38

19

35

30

3/4

M18-20

PC-66062

3/4(M)

21

150

38

25

50

50

PC-66063

3/4(L)

21

200

44.5

28.5

65

70

PC-68081

1(S)

26

150

50

32

55.5

39

7/8-1

M22,M24

PC-68082

1(M)

26

200

50

38

65.5

69

PC-68083

1(L)

26

250

50

38

88

74

PC-68084

1(XL)

26

320

50

38

113

94



相關產品

Clamping stud

Clamping stud

法蘭螺帽 CK-FN

法蘭螺帽 CK-FN

墊圈CK-W

墊圈CK-W

T 型螺帽 CK-TN

T 型螺帽 CK-TN

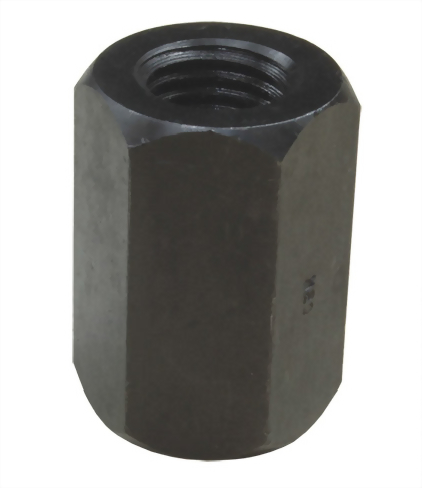

聯結螺帽 CK-CN
