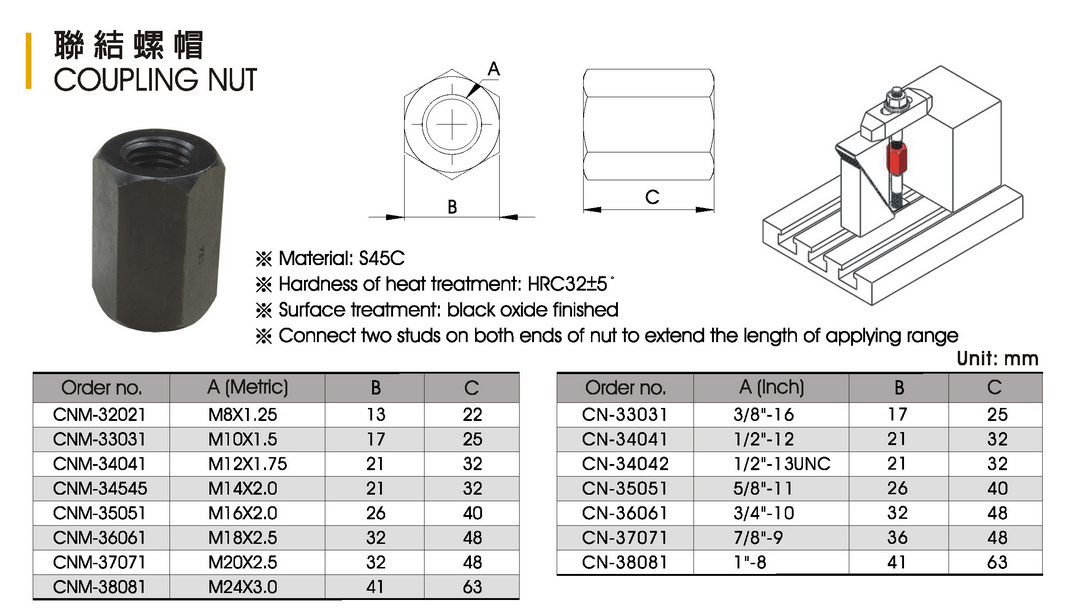

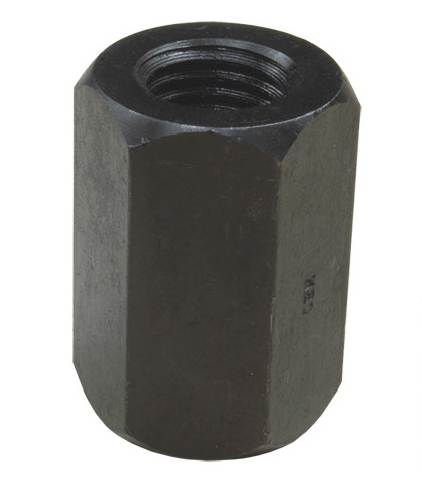

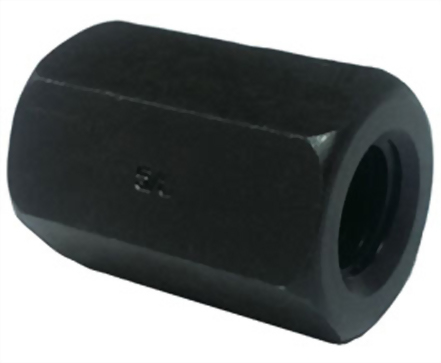

聯結螺帽 CK-CN  Coupling nut



l          Purpose: Connect two studs on both ends of nut to extend the length of applying range

l          Material: S45C, black oxide finished

l          Hardness of heat treatmentHRC32±5°

l          Product spec.: Inch size 3/8”/1/2”/5/8”/3/4”/7/8”/1” Metric size M10/M12 /M14/M16/M18/M20/M24

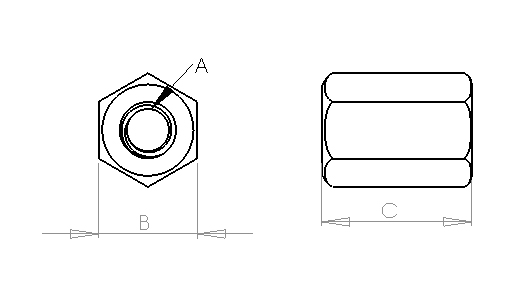

Order no.

A (Metric)

B

C

CNM-32021

M8X1.25

13

22

CNM-33031

M10X1.5

17

25

CNM-34041

M12X1.75

21

32

CNM-34545

M14X2.0

21

32

CNM-35051

M16X2.0

26

40

CNM-36061

M18X2.5

32

48

CNM-37071

M20X2.5

32

48

CNM-38081

M24X3.0

41

63



Order no.

A (Inch)

B

C

CN-33031

3/8"-16

17

25

CN-34041

1/2"-12

21

32

CN-34042

1/2"-13UNC

21

32

CN-35051

5/8"-11

26

40

CN-36061

3/4"-10

32

48

CN-37071

7/8"-9

36

48

CN-38081

1"-8

41

63
