• 鋼爪虎鉗 CC-102

鋼爪虎鉗 CC-102

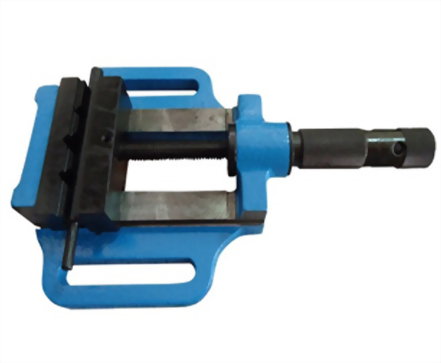

鋼爪虎鉗 CC-102  DRILL PRESS VISE

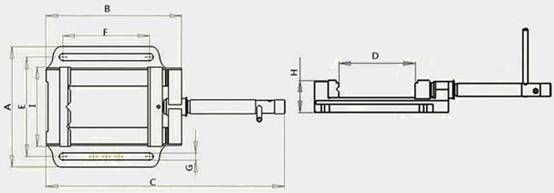

MODEL

A

B

C

D

E

F

G

H

I

Clamping Force
(TON)

KG

CC-102-3

167

165

290

85

135

81

12

50

84

1.5

3.5

CC-102-4

202

203

343

100

162

101

13

60

104

1.6

5.7

CC-102-5

226

230

390

125

190

130

13

67

132

1.75

8.2

CC-102-6

254

266

450

152

214

154

18

75

156

1.75

11.6







Feature

l          Suitable for clamping work piece on drill press machine & milling machine.

l          Designed with solid structure, main body is made of FC15, assemble a pair of heat treated steel jaws with hardness HRC 45°~50°.

l          Jaw pair and handle are surface treated by black oxide finish.

l          Front fixed prismatic jaw with cross V-grooves is designed for clamping work piece firmly in both vertical & horizontal directions.
