• 焊刃式側銑R刀

焊刃式側銑R刀

型號 : AHTU

焊刃式側銑R刀



焊刃式側銑R銑刀(外R)用於銑半圓內凹槽。

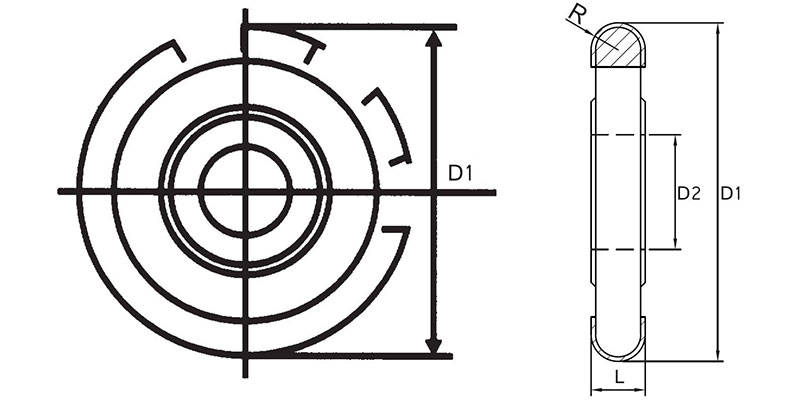

產品編號 外徑 D1 刃長 L R角 刃數 孔徑 D2
AHTU075-15 75 3 1.5R 14 25.4
AHTU075-20 75 4 2R 14 25.4
AHTU075-25 75 5 2.5R 14 25.4
AHTU075-30 75 6 3R 14 25.4
AHTU075-35 75 7 3.5R 14 25.4
AHTU075-40 75 8 4R 14 25.4
AHTU075-50 75 10 5R 14 25.4
AHTU075-60 75 12 6R 14 25.4
AHTU100-15 100 3 1.5R 16 25.4
AHTU100-20 100 4 2R 16 25.4
AHTU100-25 100 5 2.5R 16 25.4
AHTU100-30 100 6 3R 16 25.4
AHTU100-35 100 7 3.5R 16 25.4
AHTU100-40 100 8 4R 16 25.4
AHTU100-45 100 9 4.5R 16 25.4
AHTU100-50 100 10 5R 16 25.4
AHTU100-60 100 12 6R 16 25.4
AHTU125-25 125 5 2.5R 18 25.4
AHTU125-30 125 6 3R 18 25.4
AHTU125-35 125 7 3.5R 18 25.4
AHTU125-40 125 8 4R 18 25.4
AHTU125-45 125 9 4.5R 18 25.4
AHTU125-50 125 10 5R 18 25.4
AHTU125-60 125 12 6R 18 25.4
AHTU150-25 150 5 2.5R 20 25.4
AHTU150-30 150 6 3R 20 25.4
AHTU150-35 150 7 3.5R 20 25.4
AHTU150-40 150 8 4R 20 25.4
AHTU150-45 150 9 4.5R 20 25.4
AHTU150-50 150 10 5R 20 25.4
AHTU150-60 150 12 6R 20 25.4
