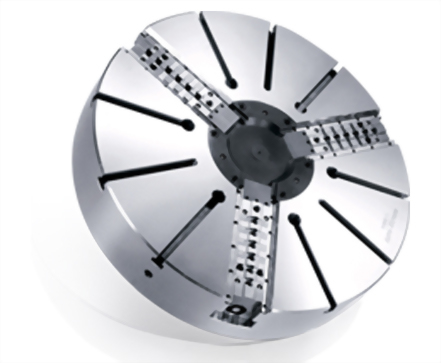

• V 三爪中實油壓夾頭(不含連接板)

V 三爪中實油壓夾頭(不含連接板)


V  三爪中實油壓夾頭(不含連接板) 3-jaw wedge type non through-hole power chuck (adapter excluded)



l          High performance :
Similar high performance with N series.

l          Chuck mounting screws :
Metric or UNC socket head cap screws are supplied for installing the chuck to the spindle.



SPEC
Model

Jaw

Plunger
Stroke
(mm)

RadialJaw.
Stroke
+(Manual setting
(mm)

Max.
Pull
Force
(kN)

Max.
Gripping
Force
(kN)

Max.
Operating
(r.p.m.)

Max.
Speed
(r.p.m.)

Weight
(kg)

Moment
Of Inertia
I
(kg
m2)

Matching
Cylinder

Matching
Hard Jaw

Matching
Soft Jaw

Gripping
O.D. Range
(mm)

40" V-240VIT-240

3

57

23 + (30)

180

320

42.8

630

645

82

MS250C

HJ40-1

HC40-1

Ø285-Ø1005

4

550

700

89

50" V-250VIT-250VE-250

3

57

23 + (30)

180

320

42.8

500

890

168

MS250C

HJ40-1

HC40-1

Ø270-Ø1250

4

400

940

177

6

360

971

183





























63" V-263VIT-263VE-263

3

60

24 + (40)

200

360

46.9

400

1800

548

MS250C

HJ40-1

HC40-1

Ø390-Ø1600

4

300

1700

518

6

280

1800

548

79" VE-279

6

60

24 + (40)

200

360

46.9

230

2850

1350

MS250C HJ40-1

HJ40-1

HC40-1

Ø440-Ø2000

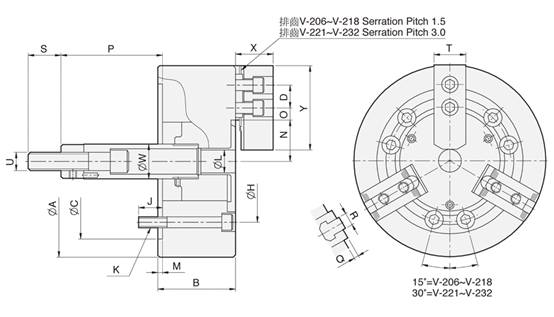

DIM
Model

A

B

C

D
max

H

J

K

L

M

N
max.

O.

P
max.

P
min.

Q

R

S

T

U

40" V-240
VIT-240

1005

180

520

502

463.6

108

M24

M52x1.5

8

457

30

59

2

4

7-M24

19

85

72

50" V-250
VIT-250
VE-250

1250

180

520

623

463.6

108

M24

M52x1.5

8

563

30

59

2

4

10-M24

19

85

72

63" V-263
VIT-263
VE-263

1600

220

720

796

647.6

144

M30

M52x1.5

8

738

40

82

22

6

13-M24

22

110

72

79"

2000

238

720

996

647.6

159

M30

M52x1.5

8

914

40

100

40

6

17-M24

22

110

72
