單向壓板CK-TCM

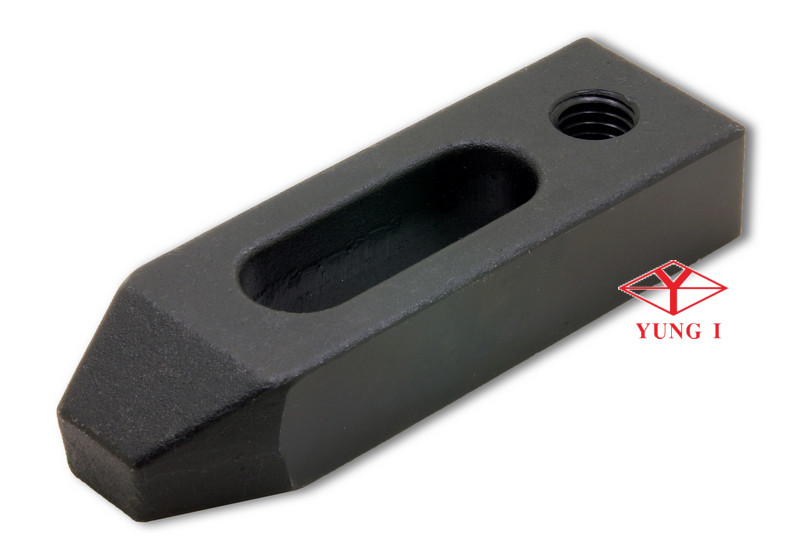

單向壓板CK-TCM Tapped clamp
l Purpose: Use the tapped hole to connect with stud for fixing the work piece.
l Material: S45C, black oxide furnished
l Heat treatment: HRC32±5°
l Product spec.:
I1/2S 1/2M 1/2L (Tapped M12 , slot width15mm)
5/8S 5/8M 5/8L (Tapped M16, slot width 18mm)
3/4S 3/4M 3/4L (Tapped M20, slot width 21mm)
Order no.
M( thread spec.)
I(slot width)
A
B
C
D
E
F
TCM-84041
M12X1.75
15
65
32
19
48
23
69
TCM-84042
M12X1.75
15
100
32
19
63
38
87
TCM-84043
M12X1.75
15
150
32
22
87
50
134
TCM-85051
M16X2.0
18
80
38
19
43
15
65
TCM-85052
M16X2.0
18
100
38
19
60
30
85
TCM-85053
M16X2.0
18
150
38
22
87
50
134
TCM-87071
M20X2.5
21
100
38
25
60
30
85
TCM-87072
M20X2.5
21
150
38
25
87
50
132
TCM-87073
M20X2.5
21
200
44.5
28.5
107
70
180
|
Order no. |
M( thread spec.) |
I(slot width) |
A |
B |
C |
D |
E |
F |
|
TCM-84041 |
M12X1.75 |
15 |
65 |
32 |
19 |
48 |
23 |
69 |
|
TCM-84042 |
M12X1.75 |
15 |
100 |
32 |
19 |
63 |
38 |
87 |
|
TCM-84043 |
M12X1.75 |
15 |
150 |
32 |
22 |
87 |
50 |
134 |
|
TCM-85051 |
M16X2.0 |
18 |
80 |
38 |
19 |
43 |
15 |
65 |
|
TCM-85052 |
M16X2.0 |
18 |
100 |
38 |
19 |
60 |
30 |
85 |
|
TCM-85053 |
M16X2.0 |
18 |
150 |
38 |
22 |
87 |
50 |
134 |
|
TCM-87071 |
M20X2.5 |
21 |
100 |
38 |
25 |
60 |
30 |
85 |
|
TCM-87072 |
M20X2.5 |
21 |
150 |
38 |
25 |
87 |
50 |
132 |
|
TCM-87073 |
M20X2.5 |
21 |
200 |
44.5 |
28.5 |
107 |
70 |
180 |
