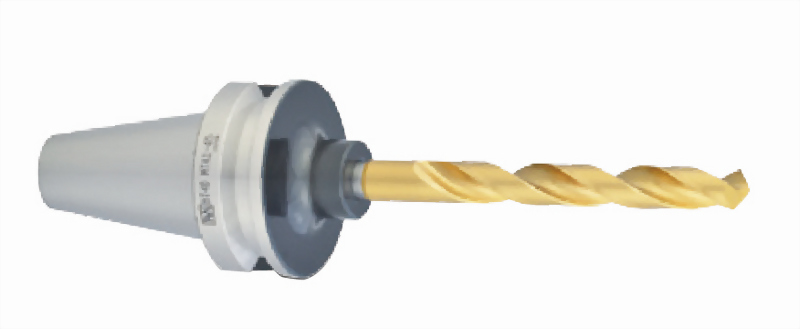

BT莫式錐度刀桿
BT Shank Morse Taper Holder BT
BT
|
Model No. |
MT. NO. |
D |
L |
Capacity |
||
|
|
|
|
|
Drill |
Reamer |
End mill |
|
BT30 MTA1-045 |
MTA1 |
25 |
45 |
2~14 |
5~14 |
10~14 |
|
BT30 MTA2-060 |
MTA2 |
32 |
60 |
14~23 |
14.5~23 |
16~22 |
|
BT30 MTA3-080 |
MTA3 |
40 |
80 |
23~32 |
24~32 |
24~32 |
|
BT40 MTA1-045 |
MTA1 |
25 |
45 |
2~14 |
5~14 |
10~14 |
|
BT40 MTA2-050 |
MTA2 |
32 |
50 |
14~23 |
14.5~23 |
16~22 |
|
BT40 MTA3-070 |
MTA3 |
40 |
70 |
23~32 |
24~32 |
24~32 |
|
BT40 MTA4-095 |
MTA4 |
50 |
95 |
32~50 |
32~50 |
35~50 |
|
BT50 MTA1-045 |
MTA1 |
25 |
45 |
2~14 |
5~14 |
10~14 |
|
BT50 MTA2-060 |
MTA2 |
32 |
60 |
14~23 |
14.5~23 |
16~22 |
|
BT50 MTA3-065 |
MTA3 |
40 |
65 |
23~32 |
24~32 |
24~32 |
|
BT50 MTA4-095 |
MTA4 |
50 |
95 |
32~50 |
32~50 |
35~50 |
BT莫式錐度刀桿 Specification MTB
|
Model No. |
MT. No. |
L |
D |
G |
Capacity |
||
|
|
|
|
|
|
Drill |
Reamer |
End mill |
|
BT30 MTB1-45 |
MTB1 |
45 |
25 |
M6x1.0P |
2~14 |
5~14 |
10~14 |
|
BT30 MTB2-60 |
MTB2 |
60 |
32 |
M10x1.5P |
14~23 |
14.5~23 |
16~22 |
|
BT40 MTB1-45 |
MTB1 |
45 |
25 |
M6x1.0P |
2~14 |
5~14 |
10~14 |
|
BT40 MTB2-45 |
MTB2 |
45 |
32 |
M10x1.5P |
14~23 |
14.5~23 |
16~22 |
|
BT40 MTB3-60 |
MTB3 |
60 |
40 |
M12x1.75P |
23~32 |
24~32 |
24~32 |
|
BT40 MTB4-90 |
MTB4 |
90 |
48 |
M16x2.0P |
32~50 |
32~50 |
35~50 |
|
BT50 MTB1-45 |
MTB1 |
45 |
25 |
M6x1.0P |
2~14 |
5~14 |
10~14 |
|
BT50 MTB2-45 |
MTB2 |
45 |
32 |
M10x1.5P |
14~23 |
14.5~23 |
16~22 |
|
BT50 MTB3-60 |
MTB3 |
60 |
40 |
M12x1.75P |
23~32 |
24~32 |
24~32 |
|
BT50 MTB4-75 |
MTB4 |
75 |
50 |
M16x2.0P |
32~50 |
32~50 |
35~50 |
|
BT50 MTB5-120 |
MTB5 |
120 |
70 |
M20x2.5P |
50~75 |
50 |
40~75 |
