• 雙夾式角固精密虎鉗 DPV

雙夾式角固精密虎鉗 DPV

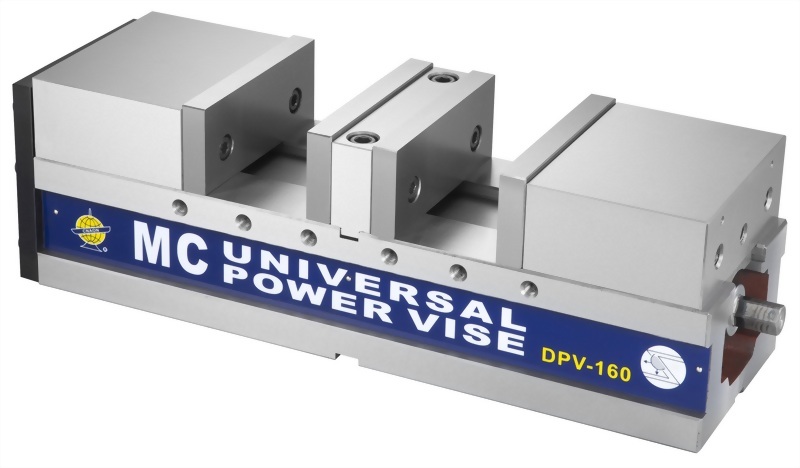

雙夾式角固精密虎鉗 DPV  - MC DOUBLE LOCK & ANGLOCK MACHINE VISE


Features

l          Double clamping mechanism, unilateral opening can be adjusted with the range, do two simultaneous machining workpieces of different sizes.

l          When the case of a larger workpiece, the original opening is no insufficient clamp, you can dismantle the middle of the clamping jaw to increase clamping distance.

l          Vise body material is high ductility of spherical graphite cast iron (FCD600), vise both sides of the slide hardened heat (HRC50°), ensure high precision and high wear resistance, high tensile strength.

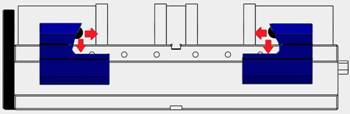

l          Angle lock semi-sphere can be generated under the power of the lock, remove workpiece to be lifted.

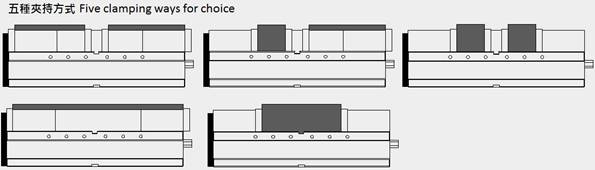

l          The vise has five clamping ways.

l          The vise with anti-litter design prevents iron filings into the vise, and iron filings easily discharged inside the interior and extend its lifetime.

相關產品

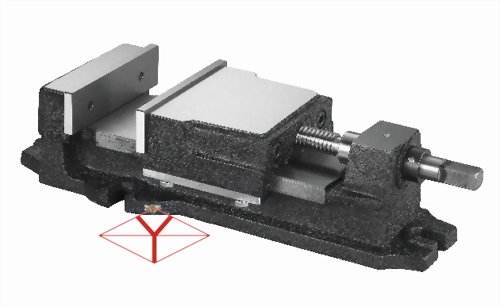

K型虎鉗 SKV
