• 分離式虎鉗 SPPV-160

分離式虎鉗 SPPV-160

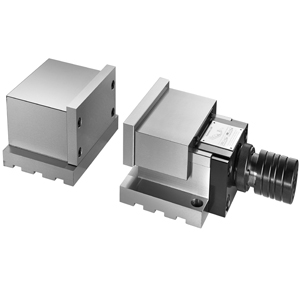

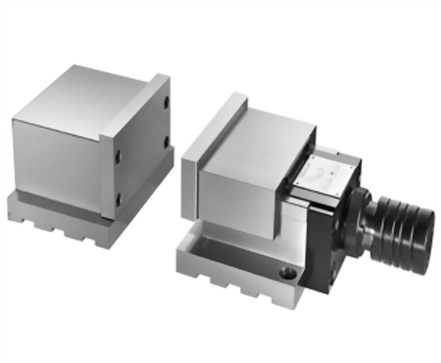

分離式虎鉗 SPPV-160  -SEPARATE PRECISION MACHINE VISE


MODEL

J

CLAMPING FORCE

STROKE

SPPV-160

To follow the workadjustment opening

3500 kgf

30mm





Features

l          The vise is mainly suitable for clamping large workpiece or adjusts the position of clamping, according to the sizes of the workpiece.

l          Angle lock semi-sphere can be generated under the power of the lock, remove the floating workpiece.

l          To put on the workpiece directly for enhancing steady clamp, they are different than other separate vises.

l          Vise body material is high ductility of spherical graphite cast iron (FCD600), vise both sides of the slide hardened heat (HRC50 °), ensure high precision and high wear resistance, high tensile strength.

l          Jaw hardened heat (HRC55 °).
