萬能夾具組 Clamping Kit 52 pcs

型號 : CK Clamping Kit

萬能夾具組 Clamping Kit

52 PCS Clamping Kit Assembly



·         用途: 在各種機械工作台面上,用來固定挾持模具、治具板

·         材質;S45C,表面染黑皮膜處理

·         熱處理硬度:各種零配件熱處理後硬度為 HRC32±5。

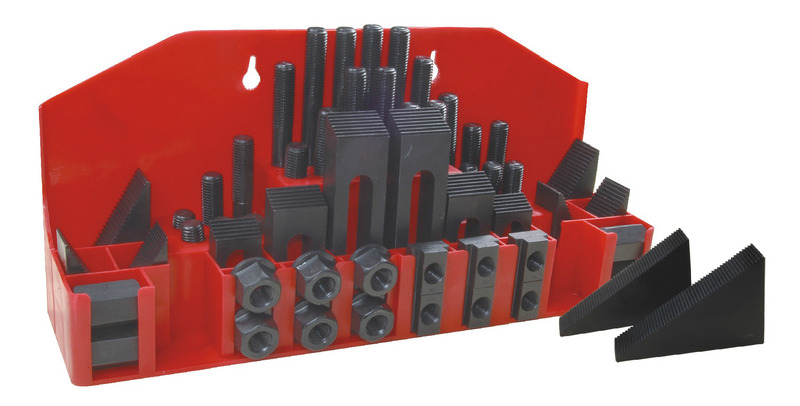

·         產品組合: 雙頭牙24支、T型螺帽6只、法蘭螺帽6只、連接螺帽4 只、齒型壓板6只、三角級枕6組(12只), 紅色塑膠架

·         產品規格:英制 3/8”/1/2”/5/8”; 公制 M8/ M10/M12 /M14/M16




萬能夾具組 Clamping Kit萬能夾具組 Clamping Kit


萬能夾具組 Clamping Kit 52 pcs

  52-PC set

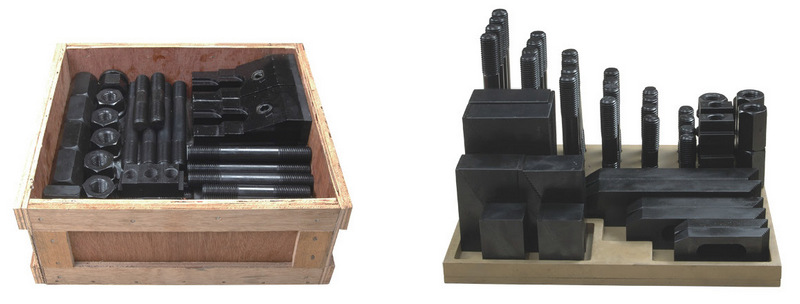

包裝方式 plastic frame/woodentray/wooden case
雙頭牙螺桿 24 pcs
T型螺帽 6 pcs
法蘭螺帽 6 pcs
連接螺帽 4 pcs
齒型壓板 6 pcs
三角級枕 6 sets(12 pcs)

萬能夾具組 Clamping Kit 52 pcs

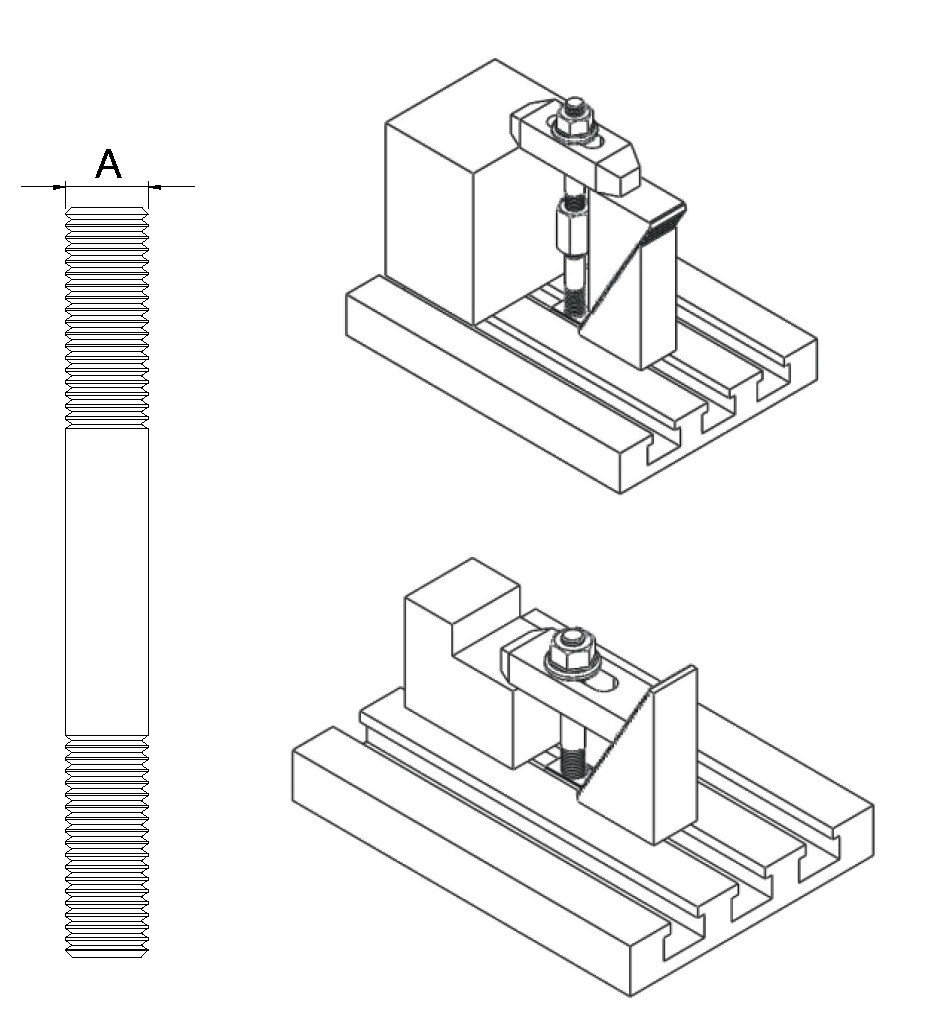

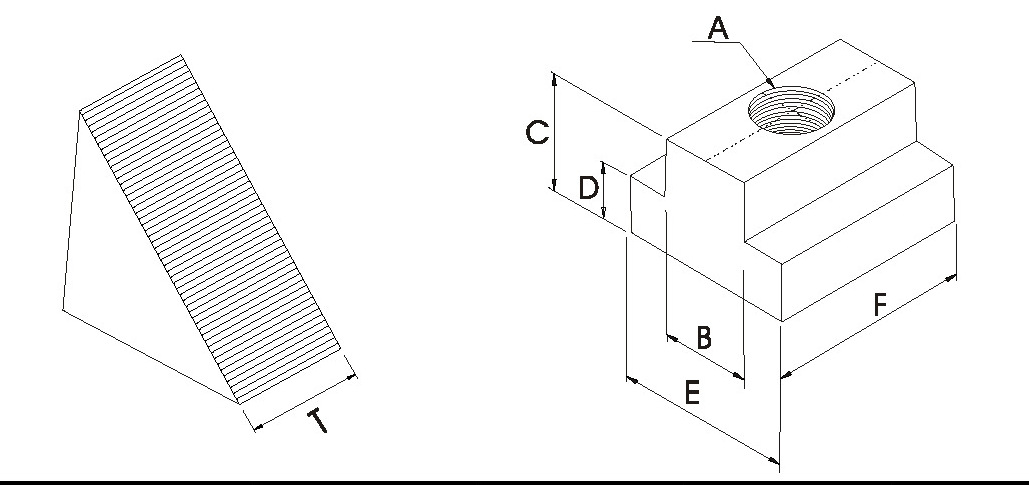

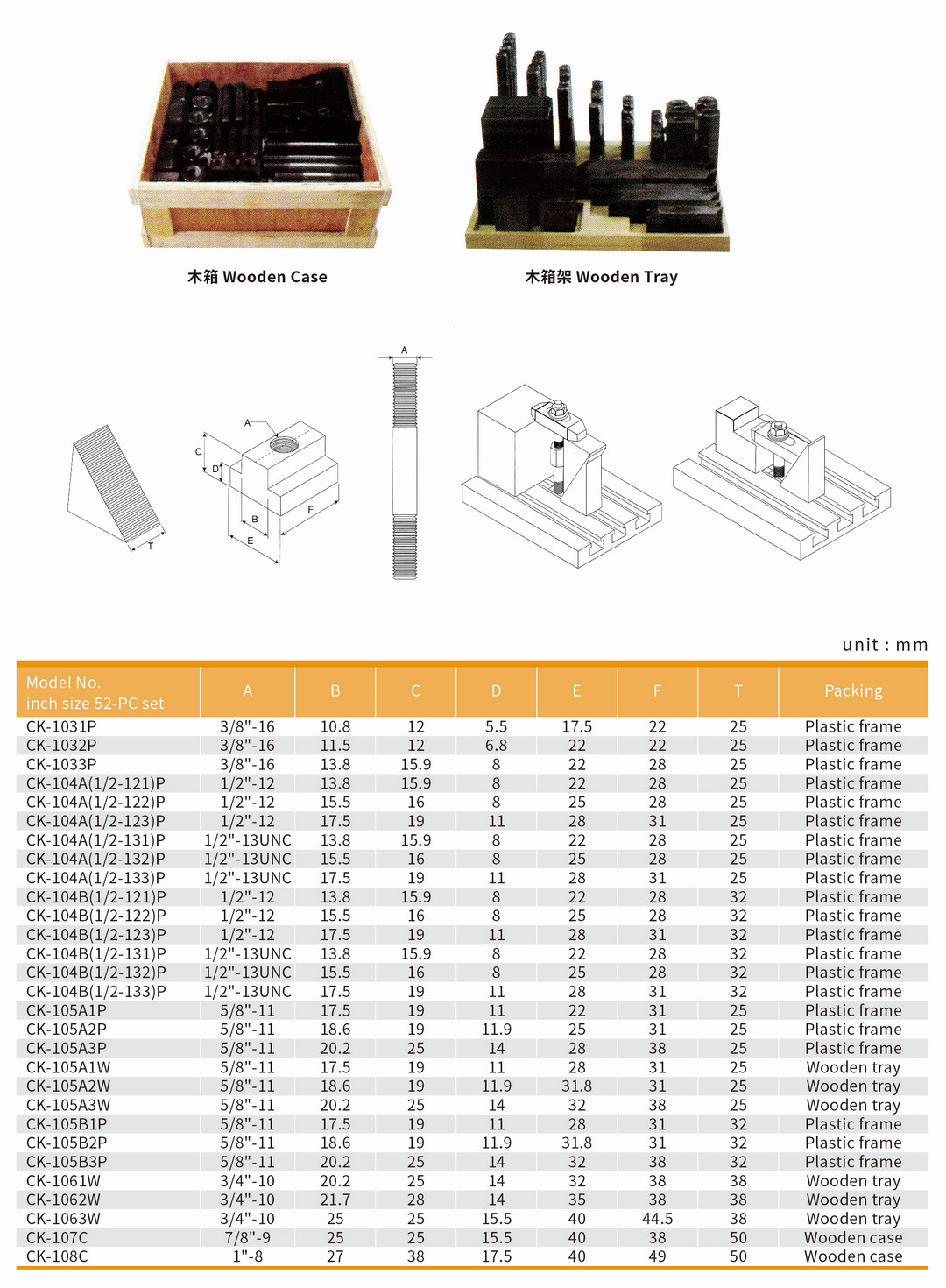

Order No. ofinch size 52-PC set A B(mm) C(mm) D(mm) E(mm) F(mm) T(mm) Packing
CK-1031P 3/8"-16 10.8 12 5.5 17.5 22 25 Plastic frame
CK-1032P 3/8"-16 11.5 12 6.8 22 22 25 Plastic frame
CK-1033P 3/8"-16 13.8 15.9 8 22 28 25 Plastic frame
CK-104A(1/2-121)P 1/2"-12 13.8 15.9 8 22 28 25 Plastic frame
CK-104A(1/2-122)P 1/2"-12 15.5 16 8 25 28 25 Plastic frame
CK-104A(1/2-123)P 1/2"-12 17.5 19 11 28 31 25 Plastic frame
CK-104A(1/2-131)P 1/2"-13UNC 13.8 15.9 8 22 28 25 Plastic frame
CK-104A(1/2-132)P 1/2"-13UNC 15.5 16 8 25 28 25 Plastic frame
CK-104A(1/2-133)P 1/2"-13UNC 17.5 19 11 28 31 25 Plastic frame
CK-104B(1/2-121)P 1/2"-12 13.8 15.9 8 22 28 32 Plastic frame
CK-104B(1/2-122)P 1/2"-12 15.5 16 8 25 28 32 Plastic frame
CK-104B(1/2-123)P 1/2"-12 17.5 19 11 28 31 32 Plastic frame
CK-104B(1/2-131)P 1/2"-13UNC 13.8 15.9 8 22 28 32 Plastic frame
CK-104B(1/2-132)P 1/2"-13UNC 15.5 16 8 25 28 32 Plastic frame
CK-104B(1/2-133)P 1/2"-13UNC 17.5 19 11 28 31 32 Plastic frame
CK-105A1P 5/8"-11 17.5 19 11 22 31 25 Plastic frame
CK-105A2P 5/8"-11 18.6 19 11.9 25 31 25 Plastic frame
CK-105A3P 5/8"-11 20.2 25 14 28 38 25 Plastic frame
CK-105A1W 5/8"-11 17.5 19 11 28 31 25 Wooden tray
CK-105A2W 5/8"-11 18.6 19 11.9 31.8 31 25 Wooden tray
CK-105A3W 5/8"-11 20.2 25 14 32 38 25 Wooden tray
CK-105B1P 5/8"-11 17.5 19 11 28 31 32 Plastic frame
CK-105B2P 5/8"-11 18.6 19 11.9 31.8 31 32 Plastic frame
CK-105B3P 5/8"-11 20.2 25 14 32 38 32 Plastic frame
CK-1061W 3/4"-10 20.2 25 14 32 38 38 Wooden tray
CK-1062W 3/4"-10 21.7 28 14 35 38 38 Wooden tray
CK-1063W 3/4"-10 25 25 15.5 40 44.5 38 Wooden tray
CK-107C 7/8"-9 25 25 15.5 40 38 50 Wooden case
CK-108C 1"-8 27 38 17.5 40 49 50 Wooden case

萬能夾具組 Clamping Kit 52 pcsclamping-kit_wood_abc1.jpg萬能夾具組 Clamping Kit 52 pcs



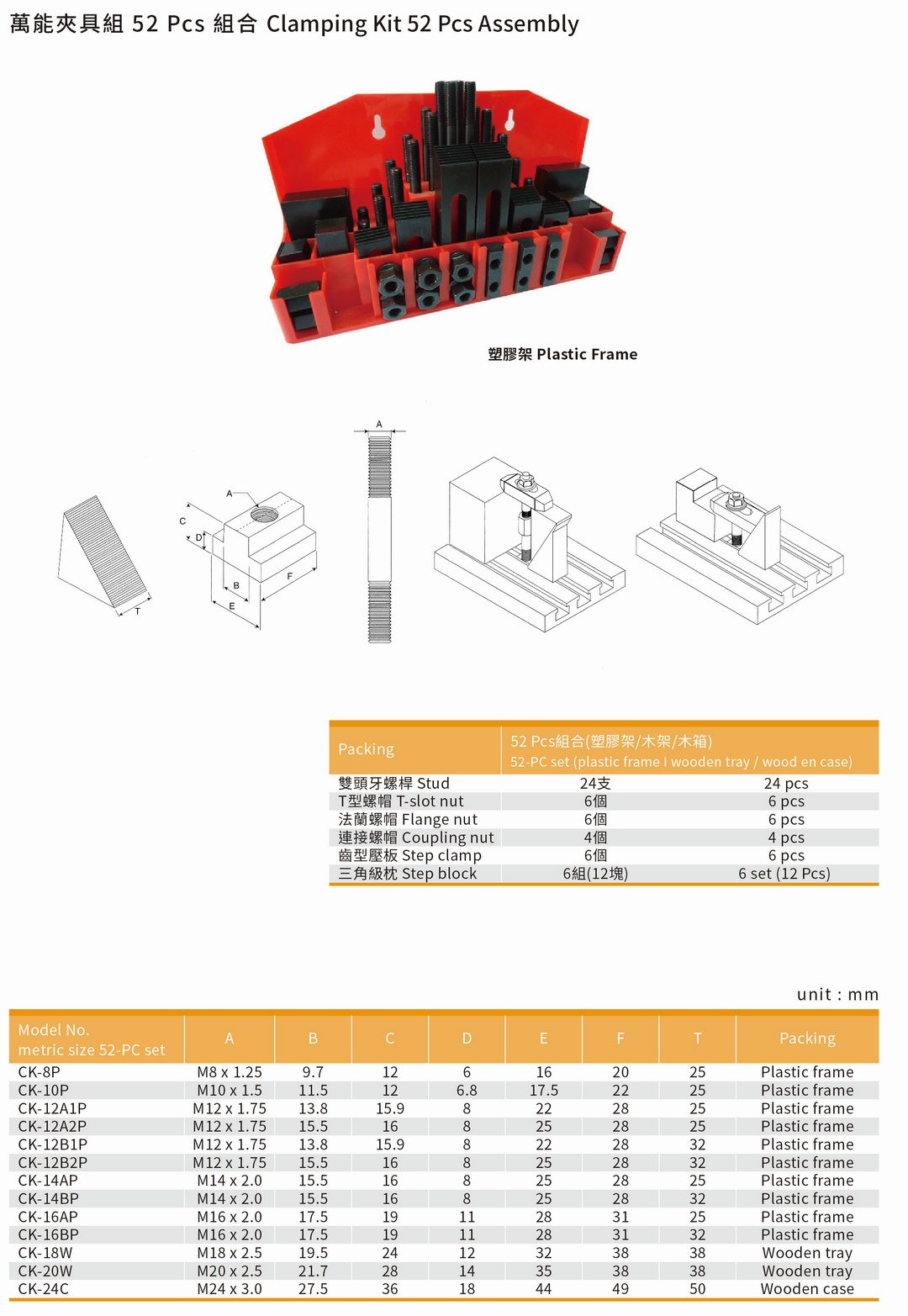

Order No. of metric size 52-PC set A B(mm) C(mm) D(mm) E(mm) F(mm) T(mm) Packing
CK-8P M8X1.25 9.7 12 6 16 20 25 Plastic frame
CK-10P M10X1.5 11.5 12 6.8 17.5 22 25 Plastic frame
CK-12A1P M12X1.75 13.8 15.9 8 22 28 25 Plastic frame
CK-12A2P M12X1.75 15.5 16 8 25 28 25 Plastic frame
CK-12B1P M12X1.75 13.8 15.9 8 22 28 32 Plastic frame
CK-12B2P M12X1.75 15.5 16 8 25 28 32 Plastic frame
CK-14AP M14X2.0 15.5 16 8 25 28 25 Plastic frame
CK-14BP M14X2.0 15.5 16 8 25 28 32 Plastic frame
CK-16AP M16X2.0 17.5 19 11 28 31 25 Plastic frame
CK-16BP M16X2.0 17.5 19 11 28 31 32 Plastic frame
CK-18W M18X2.5 19.5 24 12 32 38 38 Wooden tray
CK-20W M20X2.5 21.7 28 14 35 38 38 Wooden tray
CK-24C M24X3.0 27.5 36 18 44 49 50 Wooden case


相關產品

活動式法蘭螺帽CK-SFN

活動式法蘭螺帽CK-SFN

模具用螺絲CK-BM

模具用螺絲CK-BM

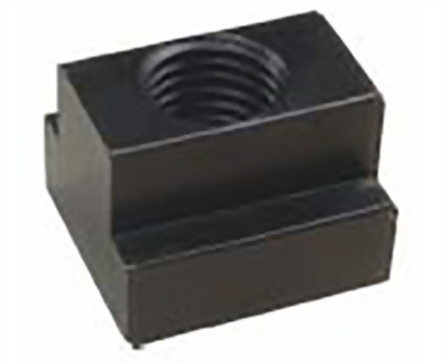

T 型螺帽 CK-TN

T 型螺帽 CK-TN

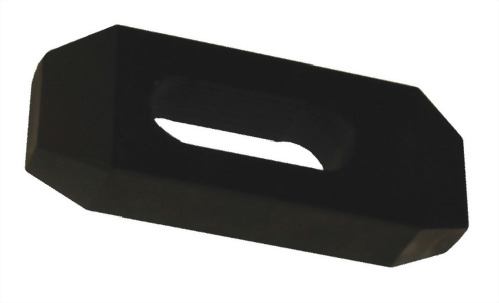

雙頭壓板CK-PC

雙頭壓板CK-PC

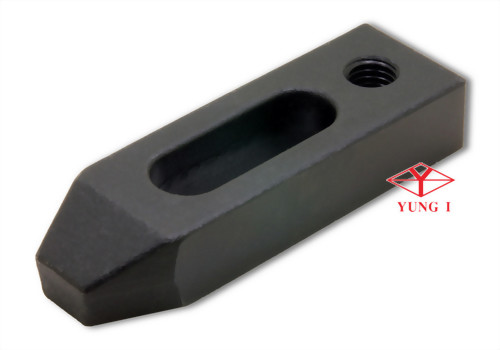

單向壓板CK-TCM

單向壓板CK-TCM

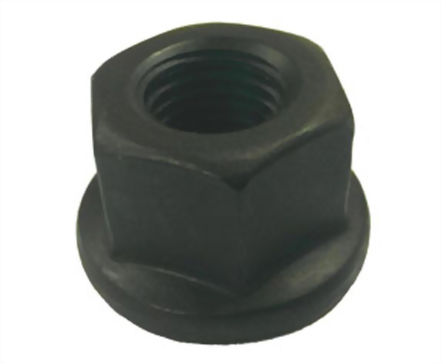

法蘭螺帽 CK-FN
