莫式錐度ER筒夾刀桿
MT-ER Collet Chuck 莫式錐度ER筒夾刀桿
MT-ER Collet Chuck
|

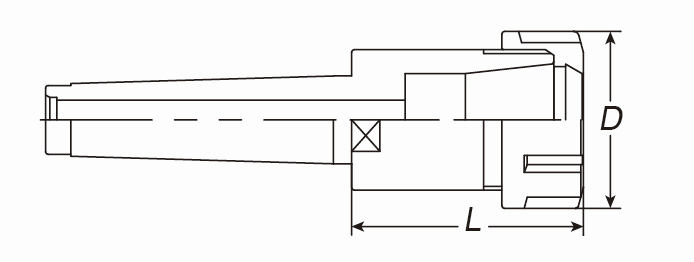

Model No. |
L |
D |
Collet Type |
Draw Bolt |
|
MTB2-ER16-40 |
40 |
28 |
ER16 |
M10x1.5 P |
|
MTB2-ER20-45 |
45 |
34 |
ER20 |
|
|
MTB2-ER25-47 |
47 |
42 |
ER25 |
|
|
MTB3-ER16-40 |
40 |
28 |
ER16 |
M12 x 1.75 P |
|
MTB3-ER32-70 |
70 |
50 |
ER32 |
|
|
MTB3-ER40-80 |
80 |
63 |
ER40 |
|
|
MTB4-ER32-60 |
60 |
50 |
ER32 |
M16 x 2.0 P |
|
MTB4-ER40-82 |
82 |
63 |
ER40 |
|
|
MTB5-ER40-82 |
82 |
63 |
ER40 |
M24 x 3.0P / 1"-8 |
