• 焊刃式直刃側銑刀

焊刃式直刃側銑刀

型號 : AHT


焊刃式直刃側銑刀




焊刃式直刃側銑刀具備平銑刀的形狀和功用外,側面也有刀刃,可同時銑削工作物的平面與側面,刀刃為直刃。

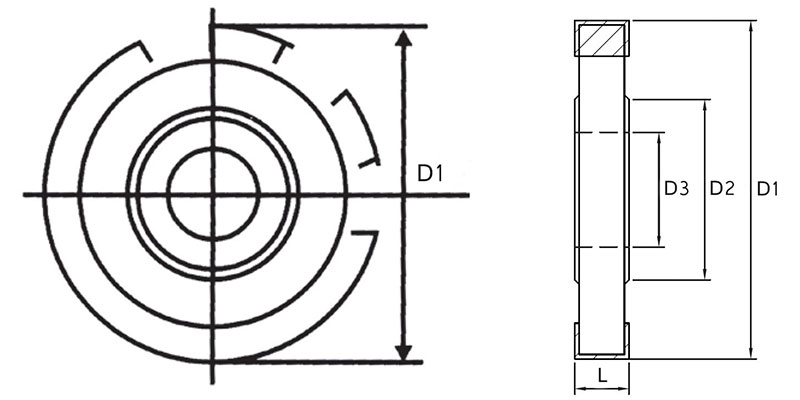

產品編號 外徑 D1 刃長 L 刃數 仔徑 D2 孔徑 D3
AHT075-02K 75 2 20 40 25.4
AHT075-03K 75 3 14 40 25.4
AHT075-04K 75 4 14 40 25.4
AHT075-05K 75 5 14 40 25.4
AHT075-06K 75 6 14 40 25.4
AHT075-07K 75 7 14 40 25.4
AHT075-08K 75 8 14 40 25.4
AHT075-09K 75 9 14 40 25.4
AHT075-10K 75 10 14 40 25.4
AHT075-11K 75 11 14 40 25.4
AHT075-12K 75 12 14 40 25.4
AHT075-13K 75 13 14 40 25.4
AHT075-14K 75 14 14 40 25.4
AHT075-15K 75 15 14 40 25.4
AHT075-16K 75 16 14 40 25.4
AHT100-02K 100 2 24 40 25.4
AHT100-03K 100 3 18 40 25.4
AHT100-04K 100 4 18 40 25.4
AHT100-05K 100 5 18 40 25.4
AHT100-06K 100 6 18 40 25.4
AHT100-07K 100 7 18 40 25.4
AHT100-08K 100 8 18 40 25.4
AHT100-09K 100 9 18 40 25.4
AHT100-10K 100 10 18 40 25.4
AHT100-11K 100 11 18 40 25.4
AHT100-12K 100 12 18 40 25.4
AHT100-13K 100 13 18 40 25.4
AHT100-14K 100 14 18 40 25.4
AHT100-15K 100 15 18 40 25.4
AHT100-16K 100 16 18 40 25.4
AHT100-20K 100 20 18 40 25.4
AHT125-02K 125 2 30 40 25.4
AHT125-03K 125 3 20 40 25.4
AHT125-04K 125 4 20 40 25.4
AHT125-05K 125 5 20 40 25.4
AHT125-06K 125 6 20 40 25.4
AHT125-07K 125 7 20 40 25.4
AHT125-08K 125 8 20 40 25.4
AHT125-09K 125 9 20 40 25.4
AHT125-10K 125 10 20 40 25.4
AHT125-11K 125 11 20 40 25.4
AHT125-12K 125 12 20 40 25.4
AHT125-13K 125 13 20 40 25.4
AHT125-14K 125 14 20 40 25.4
AHT125-15K 125 15 20 40 25.4
AHT125-16K 125 16 20 40 25.4
AHT150-02K 150 2 32 40 25.4
AHT150-03K 150 3 22 40 25.4
AHT150-04K 150 4 22 40 25.4
AHT150-05K 150 5 22 40 25.4
AHT150-06K 150 6 22 40 25.4
AHT150-07K 150 7 22 40 25.4
AHT150-08K 150 8 22 40 25.4
AHT150-09K 150 9 22 40 25.4
AHT150-10K 150 10 22 40 25.4
AHT150-11K 150 11 22 40 25.4
AHT150-12K 150 12 22 40 25.4
AHT150-16K 150 16 22 40 25.4
AHT150-20K 150 20 22 40 25.4
AHT175-02K 175 2.5 34 50 25.4
AHT175-03K 175 3 24 50 25.4
AHT175-04K 175 4 24 50 25.4
AHT175-05K 175 5 24 50 25.4
AHT175-06K 175 6 24 50 25.4
AHT175-07K 175 7 24 50 25.4
AHT175-08K 175 8 24 50 25.4
AHT175-09K 175 9 24 50 25.4
AHT175-10K 175 10 24 50 25.4
AHT175-11K 175 11 24 50 25.4
AHT175-12K 175 12 24 50 25.4
AHT200-02K 200 2.5 36 50 25.4
AHT200-03K 200 3 28 50 25.4
AHT200-04K 200 4 28 50 25.4
AHT200-05K 200 5 28 50 25.4
AHT200-06K 200 6 28 50 25.4
AHT200-07K 200 7 28 50 25.4
AHT200-08K 200 8 28 50 25.4
AHT200-09K 200 9 28 50 25.4
AHT200-10K 200 10 28 50 25.4
AHT200-11K 200 11 28 50 25.4
AHT200-12K 200 12 28 50 25.4


相關產品

焊刃式偏角側銑刀

焊刃式偏角側銑刀

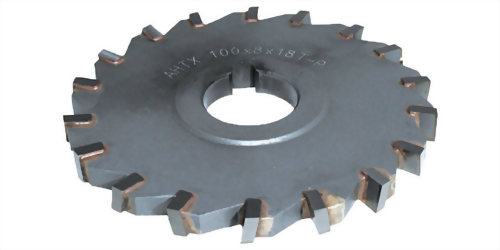

焊刃式千鳥刃側銑刀
