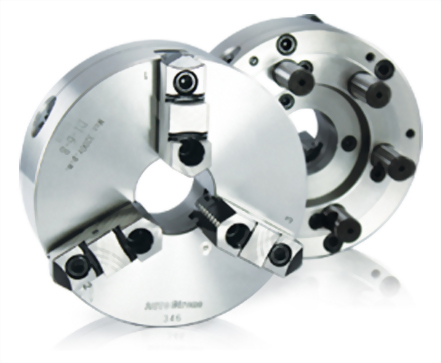

KD強力型三爪連動直裝夾頭
KD強力型三爪連動直裝夾頭 - 三爪夾頭台灣製
3-jaw strong scroll chuck D1
camlock direct mounting, 2-piece jaw
-
l
夾持精度0.03mm (0.0012”) T.I.R.。
-
l
標準配件：一支夾頭手把及六角螺絲孔扳手、一組鎖緊螺絲。
-
l
本體材質採米漢納鑄鐵，適用於高速迴轉；且具高於一般材質3倍之耐用性。
ASA spindle nose D1-4, D1-5, D1-6,
D1-8) American standard camlock type with 2-piece reversible hard top jaws.
-
l Gripping accuracy of 0.03mm (0.0012
inch) T.I.R..
-
l Standard accessories chuck wrench,
hex. key. and a set of mounting bolts. (UNC-bolts)
-
l The body is made of MEEHANITE. It
is suitably used for high speed revolution and 3 times more durable than
regular material
3-jaw strong scroll chuck D1 camlock direct mounting, 2-piece jaw
|

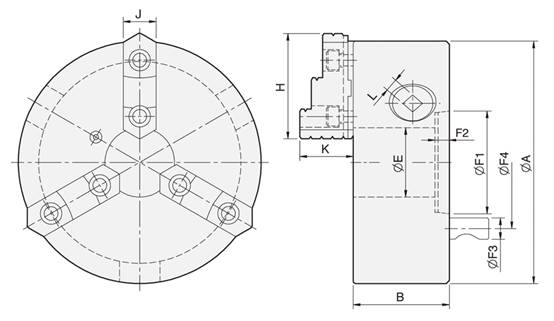

SPEC |
Spindle |
A |
B |
E |
H |
J |
K |
L |
Mounting |
Allowable |
Gripping |
Max. |
Weight |
Moment |
Gripping
Range |
|
F1
/ F2 / F3 / F4 |
O.D.
Range / I.D. Range |
||||||||||||||
|
KD4-6" |
D1-4 |
165 |
71 |
40 |
72 |
26 |
39.5 |
9.0 |
63.513
/ 13 / 15.8 / 82.55 |
9.0 |
2200 |
2000 |
11 |
0.04 |
Ø8-Ø160
/ Ø55-Ø150 |
|
KD4-8" |
D1-4 |
200 |
77.2 |
53 |
82 |
28 |
42.2 |
11.5 |
63.513
/ 13 / 15.8 / 82.55 |
11.5 |
2500 |
2000 |
18.5 |
0.07 |
Ø8-Ø180
/ Ø62-Ø170 |
|
KD5-8" |
D1-5 |
200 |
77.2 |
55 |
82 |
28 |
42.2 |
11.5 |
82.563
/ 16 / 19 / 104.78 |
11.5 |
2500 |
2000 |
18 |
0.07 |
Ø8-Ø180
/ Ø62-Ø170 |
|
KD6-8" |
D1-6 |
200 |
77.2 |
58 |
82 |
28 |
42.2 |
11.5 |
106.375
/ 17 / 22.2 / 133.35 |
11.5 |
2500 |
2000 |
17 |
0.07 |
Ø8-Ø180
/ Ø62-Ø170 |
|
KD6-10" |
D1-6 |
250 |
86 |
76 |
90.9 |
32 |
50.8 |
19.5 |
106.375
/ 17 / 22.2 / 133.35 |
19.5 |
4000 |
1800 |
29.5 |
0.2 |
Ø11-Ø220
/ Ø70-Ø210 |
|
KD6-12" |
D1-6 |
306 |
107.5 |
103 |
114.5 |
40 |
57.8 |
21.0 |
106.375
/ 13.5 / 22.2 / 133.35 |
21.0 |
4200 |
1800 |
47 |
0.5 |
Ø15-Ø300
/ Ø90-Ø290 |
|
KD8-10" |
D1-8 |
250 |
86 |
80 |
90.9 |
32 |
50.8 |
19.5 |
139.719
/ 19 / 25.4 / 171.45 |
19.5 |
4000 |
1800 |
27 |
0.2 |
Ø11-Ø220
/ Ø70-Ø210 |
|
KD8-12" |
D1-8 |
306 |
107.5 |
103 |
114.5 |
40 |
57.8 |
21.0 |
139.719
/ 18 / 25.4 / 171.45 |
21.0 |
4200 |
1800 |
47 |
0.5 |
Ø15-Ø300
/ Ø90-Ø290 |
