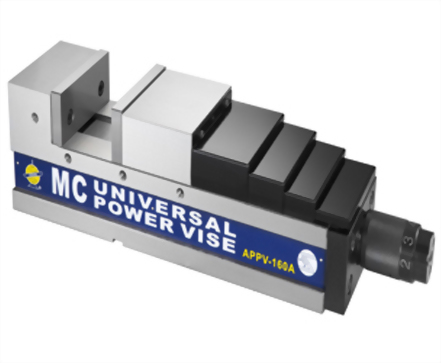

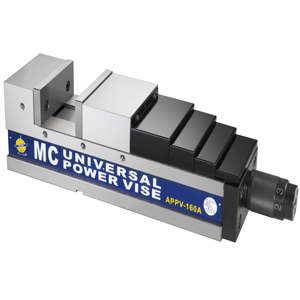

MC精密倍力虎鉗-定壓增壓型 APPV
MC精密倍力虎鉗-定壓增壓型 APPV - MC POWER MACHINE VISE-ADJUSTABLE TYPE
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
I |
M |
P |
J |
J1 |
J2 |
J3 |
Clamping Force kgf |
G.W. KG |
|
APPV-100A |
100 |
395 |
527 |
85 |
53 |
60 |
50 |
25 |
18 |
110 |
15 |
200 |
260 |
300 |
390 |
3500 |
36 |
|
APPV-130A |
130 |
470 |
602 |
100 |
58 |
75 |
55 |
25 |
18 |
160 |
15 |
250 |
340 |
370 |
460 |
4500 |
49 |
|
APPV-160A |
160 |
545 |
677 |
100 |
63 |
80 |
60 |
25 |
18 |
200 |
18 |
300 |
370 |
400 |
530 |
5000 |
67 |
|
APPV-160S |
160 |
488 |
620 |
100 |
63 |
80 |
60 |
25 |
18 |
200 |
18 |
250 |
350 |
390 |
480 |
5000 |
65 |
|
APPV-200A |
200 |
605 |
737 |
110 |
63 |
95 |
60 |
25 |
18 |
220 |
18 |
340 |
430 |
490 |
590 |
5500 |
86 |
Features：
l The vise is made by precision processing and grinding processes, it's suitable for vertical / horizontal machine centers to precision processing.
l Vise body material is high ductility of spherical graphite cast iron (FCD600) integral product design, vise both sides of the slide hardened heat (HRC50°), ensure high precision and high wear resistance, high tensile strength.
l Jaw hardened heat (HRC55 °).
l Angle lock semi-sphere can be generated under the power of the lock, removes the workpiece to be lifted.
l Mechanism design（patent design） with rapid pressurization and high clamping force of the unique characteristics of the pressuring mechanism (highest up to 5500 kgf).

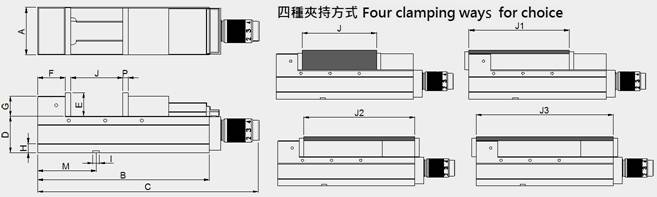

l The vise has four clamping ways for client to choice.
l The vise with anti-litter design prevents iron filings drop into the vise, and iron filings easily discharged inside the interior and extend its lifetime.
l These vises have fixed specifications. Many vises will be used together at the same time.
