• HJ 油壓夾頭硬爪

HJ 油壓夾頭硬爪


HJ 油壓夾頭硬爪 Hard jaw for hydraulic power chuck



l          Hard jaw for hydraulic power chucks.

l          Hard jaw for CNC lathe.



SPEC
Model

H-1

H-2

H-3

H-4

H-5

H-6

H-7

H-8

H-9

H-10

H-11

H-12

H-13

Serration
Pitch

Reference

Matching
Chuck

3 Jaw
Weight
(kg)

HJ05

53

23

27.5

10

4

30.5

14

22.5

13.5

8.5

10

M8

6

1.5x60°

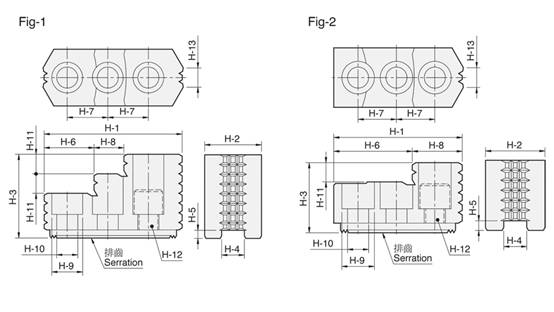

Fig-2

N-204, N-205

0.4

HJ06

67

31

35

12

5

39.5

20

27.5

17

11

12

M10

11

1.5x60°

Fig-2

N-206, V-206

1.0

HJ08

86

35

51

14

5

31

25

18

19

13

12

M12

12

1.5x60°

Fig-1

N-208, V-208

1.9

HJ10

99.5

40

54

16

5

43

30

17

19

13

13

M12

15

1.5x60°

Fig-1

N-210, V-210

2.9

HJ12

103

50

52

21

4

62.5

30

40.5

25

17

17

M16

30

1.5x60°

Fig-2

N-212

3.5

HJ12-1

103

50

52

18

5

62.5

30

40.5

22

15

17

M14

30

1.5x60°

Fig-2

V-212

3.6

HJ15

149

62

86

22

8

63

43

34

32

21

20

M20

40

1.5x60°

Fig-1

N-215, N-218

9.6

HJ15-1

149

62

86

25.5

5

63

43

34

32

21

20

M20

40

1.5x60°

Fig-1

V-215, V-218

9.5

HJ24-1

159.5

80

90

25

9

104.5

50

55

32

21

40

M20

55

3.0x60°

Fig-2

N-220, N-224, N-232
V-221, V-224, V-232

14.3
