滑桿虎鉗 CC-106A

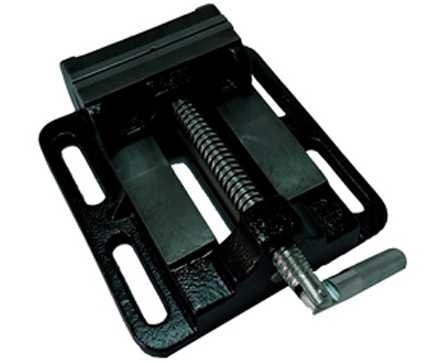

滑桿虎鉗 CC-106A  SLIDING BAR VISE

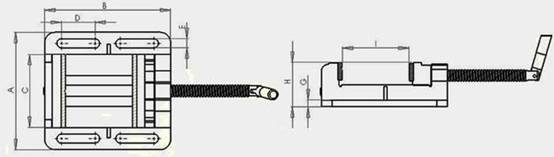

MODEL

A

B

C

D

E

G

H

I

N.W. KG

CC-106A-3

142

159

82

47.5

13

10

57

75

2.8

CC-106A-4

167

180

104

48

13

10

62.5

91

3.6

CC-106A-5

191

208

128

66

13

11

68

110

5.2

CC-106A-6

228

250

153

74.5

14

12

79.5

143

7.5





Feature

l          Suitable for clamping work piece on drill press machine & milling machine.

l          Designed with solid structure, main body is made of FC15, assemble a pair of heat treated steel jaws with hardness HRC 45°~50°.

l          Jaw pair and handle are surface treated by black oxide finish.

l          Front fixed prismatic jaw with cross V-grooves is designed for clamping work piece firmly in both vertical & horizontal directions.
