KA強力型三爪連動直裝夾頭
KA強力型三爪連動直裝夾頭 3-jaw strong scroll chuck A1 direct mounting, 2-piece jaws
(ASA spindle nose A1-5, A1-6) American standard camlock type with 2-piece reversible hard top jaws.
l Gripping accuracy of 0.03mm (0.0012 inch) T.I.R..
l Standard accessories chuck wrench, hex. key. and a set of mounting bolts. (UNC-bolts)
l The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.
|

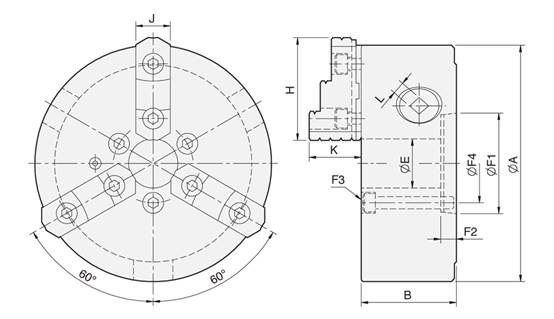

SPEC |
Spindle |
A |
B |
E |
H |
J |
K |
L |
Mounting |
Allowable |
Gripping |
Max. |
Weight |
Moment |
Gripping Range |
|
F1 / F2 / F3 / F4 |
O.D. Range / I.D. Range |
||||||||||||||
|
KD5-8" |
A1-5 |
200 |
77.2 |
40 |
81.2 |
28 |
42.2 |
11 |
82.563 / 14.288 / 3-M10 / 61.9 |
11.0 |
2500 |
2000 |
18 |
0.07 |
Ø8-Ø180 / Ø62-Ø170 |
|
KD6-8" |
A1-6 |
200 |
77.2 |
53 |
81.2 |
28 |
42.2 |
11 |
106.375 / 15.875 / 3-M12 / 82.6 |
11.0 |
2500 |
2000 |
18 |
0.07 |
Ø8-Ø180 / Ø62-Ø170 |
|
KD6-10" |
A1-6 |
250 |
86 |
53 |
90.9 |
32 |
50.8 |
12 |
106.375 / 15.875 / 3-M12 / 82.6 |
19.0 |
4000 |
1800 |
29.5 |
0.2 |
Ø11-Ø220 / Ø70-Ø210 |
|
KD6-12" |
A1-6 |
306 |
107.5 |
53 |
114.5 |
40 |
57.8 |
14 |
106.375 / 15.875 / 3-M12 / 82.6 |
21.0 |
4200 |
1800 |
47 |
0.5 |
Ø15-Ø300 / Ø90-Ø290 |
|
KD8-12" |
A1-8 |
306 |
107.5 |
77 |
114.5 |
40 |
57.8 |
14 |
139.719 / 17.462 / 6-M16 / 111.1 |
21.0 |
4200 |
1800 |
47 |
0.5 |
Ø15-Ø300 / Ø90-Ø290 |
