DV/DN  立式與立臥式油壓夾頭系列  Vertical and vertical horizontal stationary power chuck



l          Suitable for vertical milling and drilling operations.

l          With large through-hole, Vertical / horizontal power chucks does not only clamp the long workpiece but also the horizontal holding.



SPEC
Model

Piston
Dia.
(mm)

Piston Area
(cm2 )
Push Side / Pull Side

Max. Draw Bar Force
(kgf)
Push Side / Pull Side

Piston
Stroke
(mm)

Max.
Operating
Pressure
(kgf / cm2)

Weight
(kg)

Matching Chuck

DV-6

Ø115

104 / 78.5

1900 / 1400

20

20

12

V-206

DV-8

Ø155

187 / 148.6

3600 / 2800

21

20

21

V-208, V-210, V-212

DN-8

Ø155

148.6 / 148.6

2800 / 2800

17

20

28.5

N-208

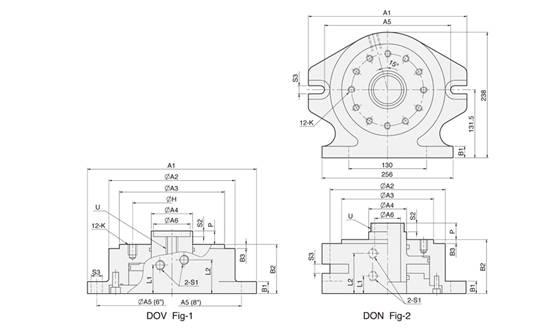

DIM
Model

A1

A2

A3

A4

A5

A6

B1

B2

B3

H

K

L1

L2

P
max.

P
min.

S1

S2

S3

U

Referenoe

DV-6

Ø220

168

140

55

Ø220

49

16

65.5

5.5

104.78

12-M10x16L

38

45

18

-2

PT 1/4"

7.6

2-Ø15

M16xP2.0

Fig-1

DV-8

Ø290

210

170

70

242

58

24

86

5.5

133.35

12-M12x18L

23

65

20

-1

PT 1/4"

5.5

2-16

M16xP2.0

Fig-1

DN-8

Ø293

213

170

70

242

52

24

100

5.5

133.35

12-M12x18L

32.5

74.5

30.4

13.4

PT 1/4"

16

4-17

M60xP2.0

Fig-2
