• 三面鋼爪虎鉗 CC-107

三面鋼爪虎鉗 CC-107


三面鋼爪虎鉗 CC-107  3 WAY VISE

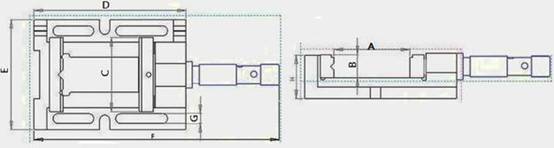

MODEL

A

B

C

D

E

F

G

H

Clamping Force(TON)

KG

CC-107-4

101

32

104

209

156

340

12

62

1.6

5.9





Feature

l          3 dimension processed surfaces are applicable for clamping work piece on drill press machine & milling machine.

l          Designed with solid structure, main body is made of FCD45, assemble a pair of heat treated steel jaws with hardness HRC 45° ~ 50°.

l          Jaw pair and handle are surface treated by black oxide finish.

l          Front fixed prismatic jaw with cross V-grooves is designed for clamping work piece firmly in both vertical & horizontal directions.

l          The verticality tolerance between each 2 surface of 3 dimensions are controlled in 0.10mm

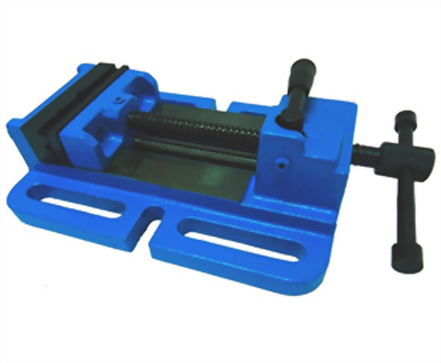

相關產品
