• 氣壓式精密虎鉗 APV-160

氣壓式精密虎鉗 APV-160

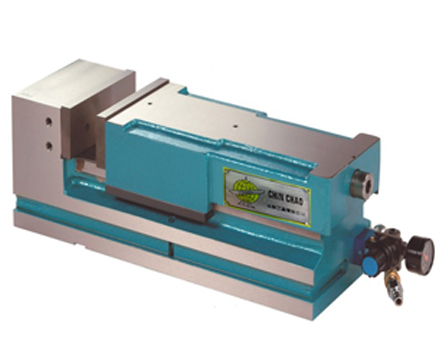

氣壓式精密虎鉗 APV-160  -AIR POWER VISE

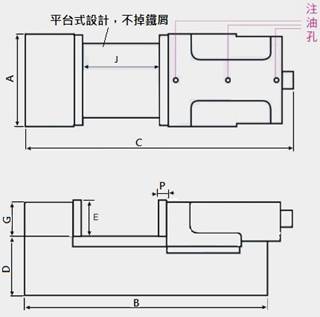

MODEL

A

B

C

D

E

G

P

J

Clamping Force kgf

G.W.KG

APV-160

160

480

685

85

60

60

15

210

400~4000

60



Standard Accessories

1. Handle x 1 pc2. Screw 5/8" x 4 pcs3. Vise locked block x 4 pcs

Feature

l          Fast clamping and safe with backstop valve for no losing pressure of air leakage.

l          Special design is 5 times pressurized cylinder and leverage boost.

l          Platform design for working surface with no gap, no residued iron filing, easily set the workpiece.

l          Heat treatment for slide surface above HRC50°. High precise polish, strong and durable.

l          Nodular graphite FCD65 kg/cm2 used, high rigidity no aberration and breakage.

l          Clamping is very fast only 0.5 second.

Maintenance and precautions:

l          Lubricating into 3 lubrication holes weekly.

l          To avoid pressure boost rusty or corroding, adding F.R.L combination on pressure source.

l          Clamping distance 5mm and speedy.
