MR 中實超短型迴轉油壓缸  Non through-hole compact rotary hydraulic cylinder



l          Light weight design can reduce the spindle loading for vertical lathe application.

l          Built-in check valve and proximity switch brackets.

l          Developed for rear locking installation.




SPEC
Model

Piston
Dia.
(mm)

Piston Area
(cm2)
Push Side / Pull Side

Max. Draw Bar Force
KN(kgf)
Push Side / Pull Side

Piston
Stroke
(mm)

Max.
Operating
Pressure
MPa
(kgf / cm2)

Max.
Speed
(r.p.m.)

Moment
Of Inertia
I
(kg
m2 )

Weight
(kg)

Total
Leakage
L/min

MR15035

150

171.1 / 156.7

72(7342) / 66(6730)

35

4.5(45.9)

5500

0.043

12.8

0.8

MR20060

200

310 / 286

146(14887) / 134(13664)

60

4.9(50)

5000

0.55

49

2

MR25060

250

481.5 / 453.6

227(23147) / 214(21822)

60

4.9(50)

2000

0.81

72

2

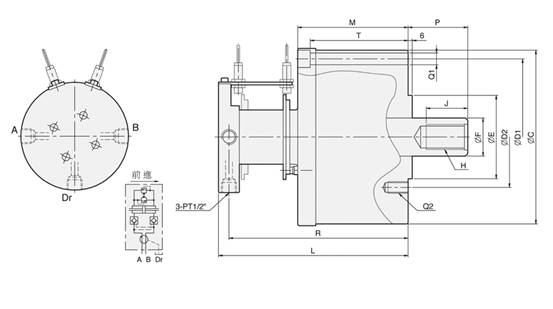

DIM
Model

C

C1

D1

D2

E
(h7)

F

G

H

J

L

M

P
max.

P
min.

Q1

Q2

R

T

Z

MR15035

202

204

180

130

110

110

45

M30x3.5

45

175

95

61

26

6-Ø13

12-M12

163

82

5

MR20060

250

225

225

145

120

55

37

M36xP4.0

60

270

156

85

25

6-Ø17

6-M16

255

140

6

MR25060

300

305

275

220

160

65

44

M42xP3.0

60

280

168

85

25

6-Ø17

6-M20

265

150

6
