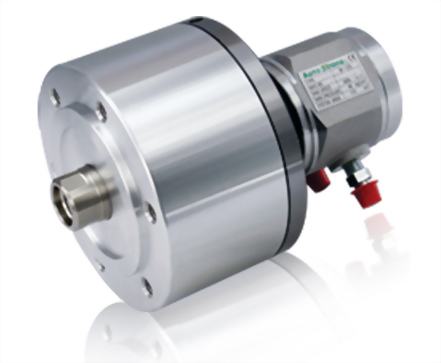

MS 中實迴轉油壓缸(含逆止閥)Non through-hole rotary hydraulic cylinder (valve included)



l          Built-in safty check valves.


SPEC
Model

Piston Area
(cm2)
Push Side / Pull Side

Max. Draw Bar Force
KN(kgf)
Pull Side

Piston
Stroke
(mm)

Max.
Operating
Pressure
MPa
(kgf / cm2)

Max.
Speed
(r.p.m.)

Moment
Of Inertia
I
(kg
m2 )

Weight
(kg)

Total
Leakage
L/min

MS105

86 / 79

29(2957)

20

4.0(40.8)

6000

0.0125

7.1

0.8

MS125

122 / 113

42(4283)

25

4.0(40.8)

6000

0.0225

10

0.8

MS150

176 / 160

60(6118)

30

4.0(40.8)

5500

0.0475

13.5

0.8

MS200

314 / 290

108(11013)

35

4.0(40.8)

5500

0.0975

22

0.8

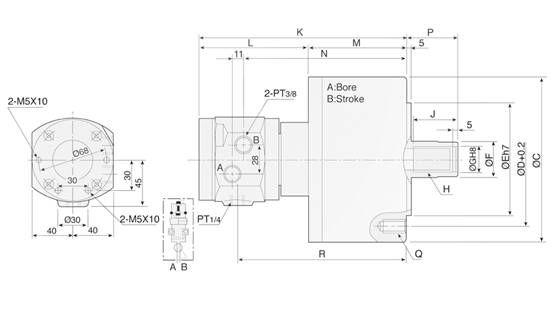

DIM
Model

A

B

C

D

E

F

G

H

J

K

L

M

N

P
max.

P
min.

Q

R

MS105

105

20

135

100

80

30

21

M20xP2.5

35

197

108

89

152

45

25

6-M10x20

158

MS125

125

25

160

130

110

35

25

M24xP3.0

44

205

108

97

160

51

26

6-M12x24

166

MS150

150

30

190

130

110

45

31

M30xP3.5

45

214

108

106

169

56

26

12-M12x24

175

MS200

200

35

245

145

120

55

37

M36xP4.0

60

228

108

122

183

69

34

12-M16x30

189
