模具用螺絲CK-BM

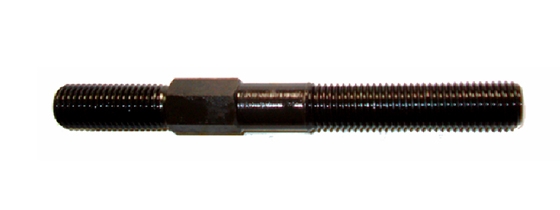

模具用螺絲CK-BM Bolt for injection mold
l Purpose: Applied for injection mold plate
l Material: S45C, black oxide furnished
l Heat treatment：HRC32±5°
l Product spec.: Inch size 5/8”/3/4”7/8”/1”； Metric size M12 /M16/M20/M22/M24
|

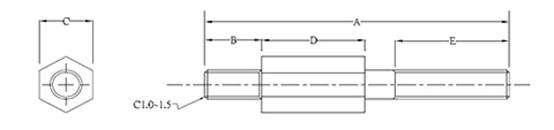

Part no. |
metric size |
A |
B |
C |
D |
E |
|
BMM-74005 |
M12X1.75 |
120 |
30 |
14 |
20 |
55 |
|
BMM-74006 |
150 |
75 |
||||
|
BMM-74007 |
175 |
90 |
||||
|
BMM-75004 |
M16X2.0 |
100 |
25 |
17 |
15 |
55 |
|
BMM-75005 |
130 |
35 |
20 |
65 |
||
|
BMM-75006 |
155 |
40 |
25 |
80 |
||
|
BMM-75007 |
180 |
90 |
||||
|
BMM-75008 |
200 |
|||||
|
BMM-75010 |
250 |
|||||
|
BMM-76005 |
M18X2.5 |
130 |
35 |
19 |
20 |
65 |
|
BMM-76006 |
155 |
25 |
80 |
|||
|
BMM-76007 |
180 |
40 |
90 |
|||
|
BMM-77004 |
M20X2.5 |
100 |
25 |
21 |
15 |
50 |
|
BMM-77005 |
130 |
35 |
20 |
65 |
||
|
BMM-77006 |
155 |
40 |
25 |
80 |
||
|
BMM-77007 |
180 |
90 |
||||
|
BMM-77008 |
200 |
45 |
||||
|
BMM-77010 |
250 |
|||||
|
BMM-77506 |
M22×2.5 |
155 |
40 |
23 |
20 |
80 |
|
BMM-77507 |
180 |
90 |
||||
|
BMM-77508 |
200 |
|||||
|
BMM-78006 |
M24X3.0 |
155 |
40 |
26 |
25 |
80 |
|
BMM-78007 |
185 |
90 |
||||
|
BMM-78008 |
200 |
|||||
|
BMM-78010 |
255 |
|
Part no. |
Inch size |
A |
B |
C |
D |
E |
|
BM-75004 |
5/8"-11W |
100 |
25 |
17 |
15 |
55 |
|
BM-75005 |
130 |
30 |
20 |
65 |
||
|
BM-75006 |
150 |
40 |
25 |
75 |
||
|
BM-75007 |
175 |
90 |
||||
|
BM-75010 |
250 |
50 |
||||
|
BM-76004 |
3/4"-10W |
100 |
25 |
19 |
15 |
55 |
|
BM-76005 |
135 |
35 |
20 |
65 |
||
|
BM-76006 |
155 |
25 |
80 |
|||
|
BM-76007 |
180 |
40 |
90 |
|||
|
BM-76008 |
200 |
|||||
|
BM-76010 |
250 |
50 |
||||
|
BM-77006 |
7/8"-9W |
155 |
40 |
23 |
20 |
80 |
|
BM-77007 |
180 |
|||||
|
BM-77008 |
200 |
90 |
||||
|
BM-78007 |
1"-8W |
175 |
40 |
26 |
25 |
90 |
|
BM-78008 |
200 |
|||||
|
BM-78009 |
225 |
|||||
|
BM-78010 |
250 |
