• 2-jaw through-hole power chuck (adapter excluded)

2-jaw through-hole power chuck (adapter excluded)


NT-200 二爪中空油壓夾頭(不含連接板) 2-jaw through-hole power chuck (adapter excluded)



l          All sliding surfaces are hardened and ground for accurate actual running and long service repeatability. Lubrication nipple in each base jaw.

l          Base jaw : 1.5mm x 60° serration.

l          Mounting : Adaptor mounting to fit with DIN, ISO, BS, ASA B5.9 type A spindles.



SPEC
Model

Through
-Hole
(mm)

Plunger
Stroke
(mm)

Jaw
Stroke
(In Dia.)
(mm)

Max.
Pull
Force
(kgf)

Max.
Gripping
Force
(kgf)

Max.
Operating
Pressure
(kgf / cm2)

Max.
Speed
(r.p.m.)

Weight
(kg)

Moment
Of Inertia
I
(kg
m2 )

Matching
Cylinder

Matching
Hard Jaw

Matching
Soft Jaw

Gripping
O.D. Range
(mm)

NT-205

Ø33

10

5.4

1189

2447

19.5

7000

6.8

0.017

M1036

HJ05

HC05

Ø6-Ø135

NT-206

Ø45

12

5.5

1495

3875

18.9

6000

12.8

0.054

M1246

HJ06

HC06

Ø15-Ø169

NT-208

Ø52

16

7.4

2366

5975

18.4

5000

22

0.163

M1552

HJ08

HC08

Ø20-Ø210

NT-210

Ø75

19

8.8

2927

7546

18.4

4200

34

0.306

M1875

HJ10

HC10

Ø25-Ø254

NT-212

Ø91

23

10.6

3875

9993

18.4

3300

55

0.717

M2091

HJ12

HC12

Ø30-Ø304

NT-215

Ø117.5

23

10.6

4823

12236

15.3

2500

106

2.17

M2511

HJ15

HC15

Ø50-Ø381

NT-218

Ø117.5

23

10.6

4823

12236

15.3

2000

122

3.31

M2511

HJ15

HC15

Ø50-Ø450

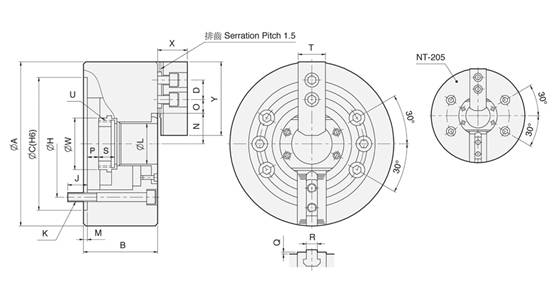

DIM
Model

A

B

C
(H6)

D

H

J

K

L

M

N
max.

O
max.

O
min.

P
max.

P
min.

Q

R

S

T

U
max.

W

X

Y

NT-205

135

60

110

14

82.55

15

4-M10x60

33

4

23.2

26.5

7.75

1

-9

2

10

20

23

M40x1.5

45

31

54

NT-206

169

81

140

20

104.78

16

6-M10x80

45

5

26.5

32

9.25

11

-1

2

12

19

31

M55x2

60

37

73

NT-208

210

91

170

25

133.35

20

6-M12x90

52

5

32

38.7

11.75

14.5

-1.5

2

14

20.5

35

M60x2

66

38

95

NT-210

254

100

220

30

171.45

22

6-M16x100

75

5

38.7

51

14.25

8.5

-10.5

2

16

25

40

M85x2

94

43

110

NT-212

304

110

220

30

171.45

23

6-M16x110

91

6

51

61.3

15.75

8

-15

2

21

28

50

M100x2

108

51

130

NT-215

381

133

300

43

235

35

6-M20x135

117.5

6

61.3

82

15.25

7

-16

5

22

43

62

M130x2

139

66

165

NT-218

450

133

300

43

235

35

6-M20x135

117.5

6

82

82

15.25

7

-16

5

22

43

62

M130x2

139

66

165
